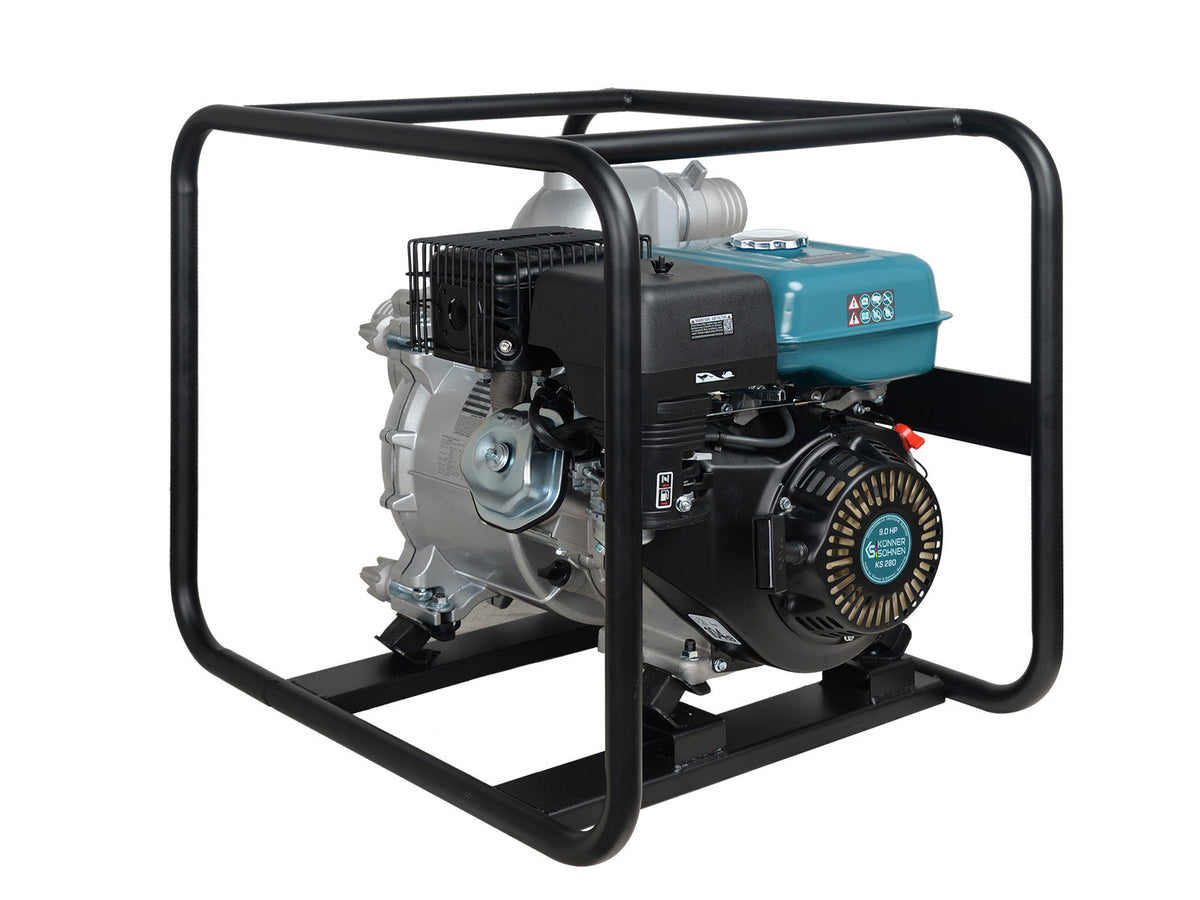

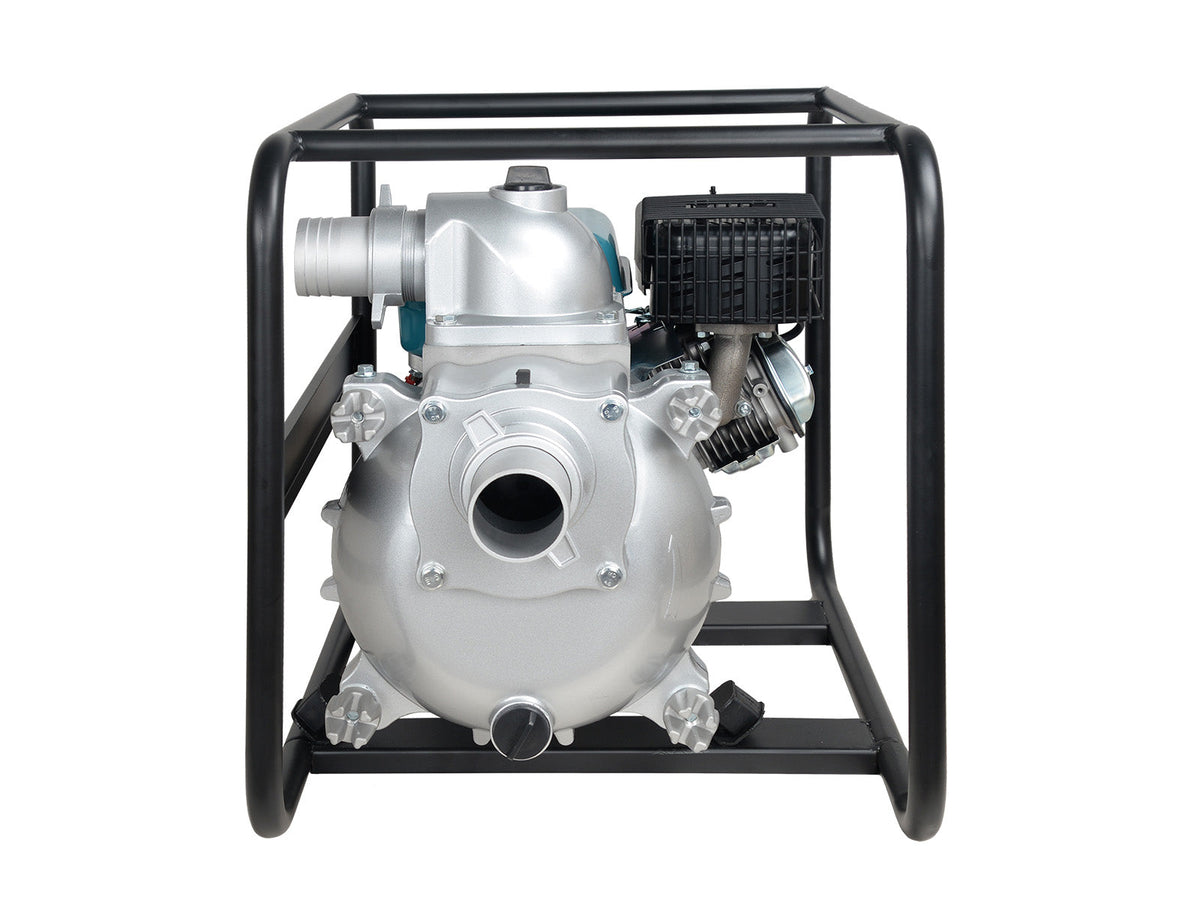

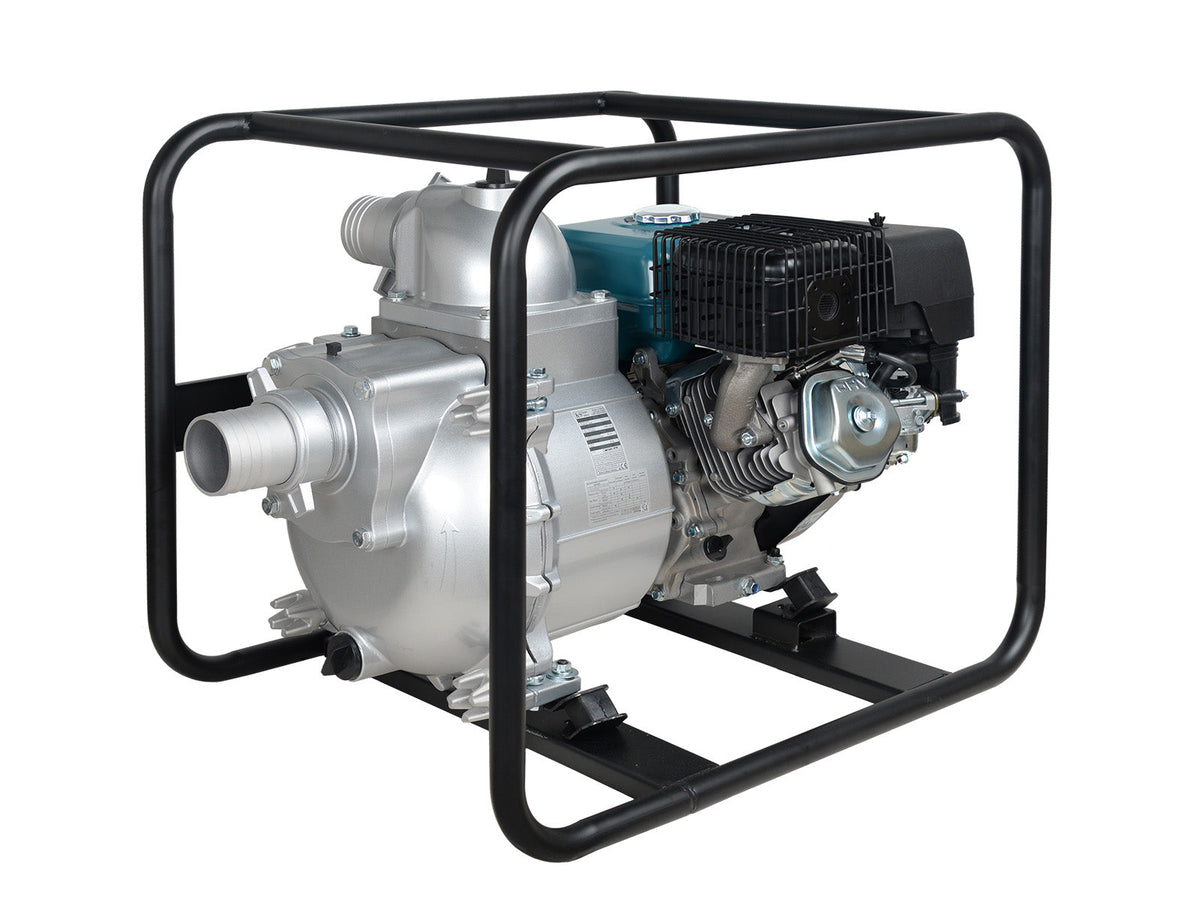

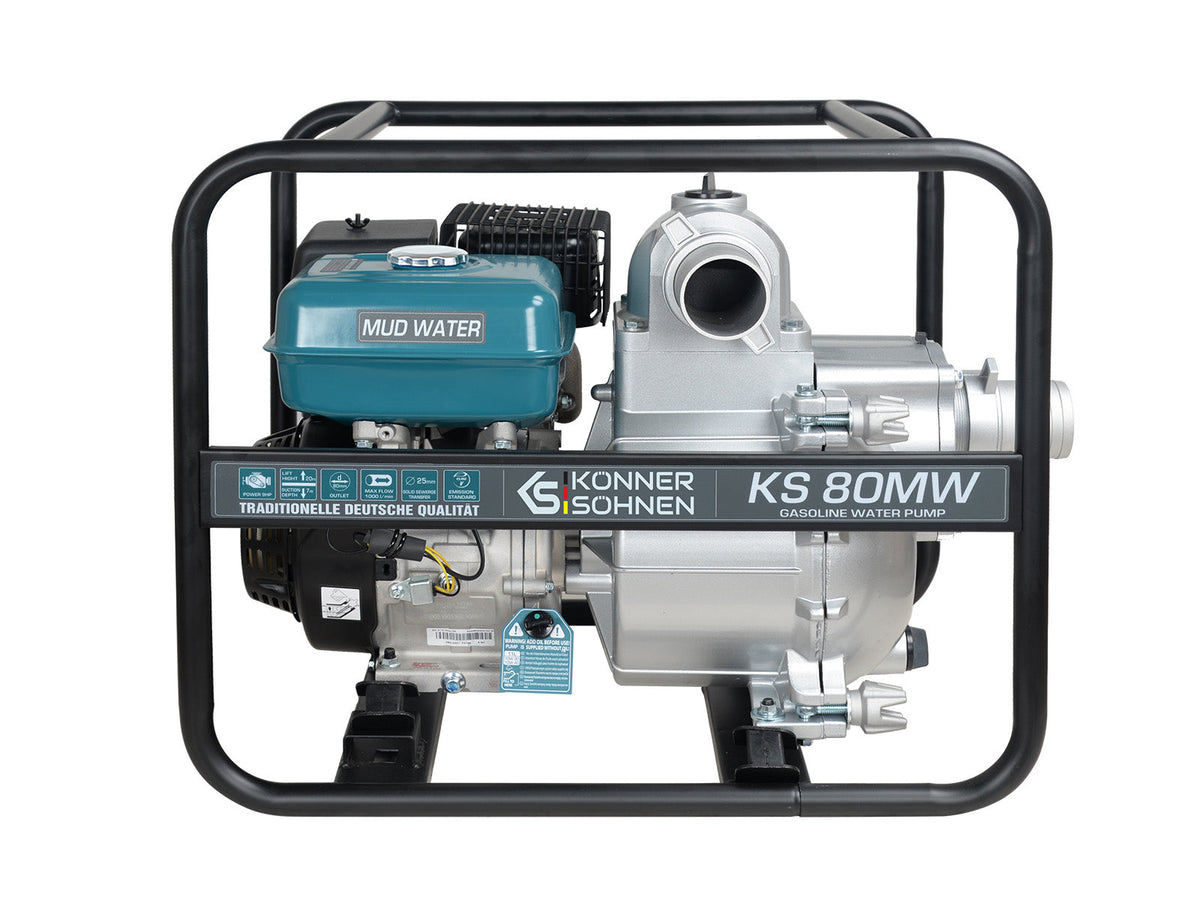

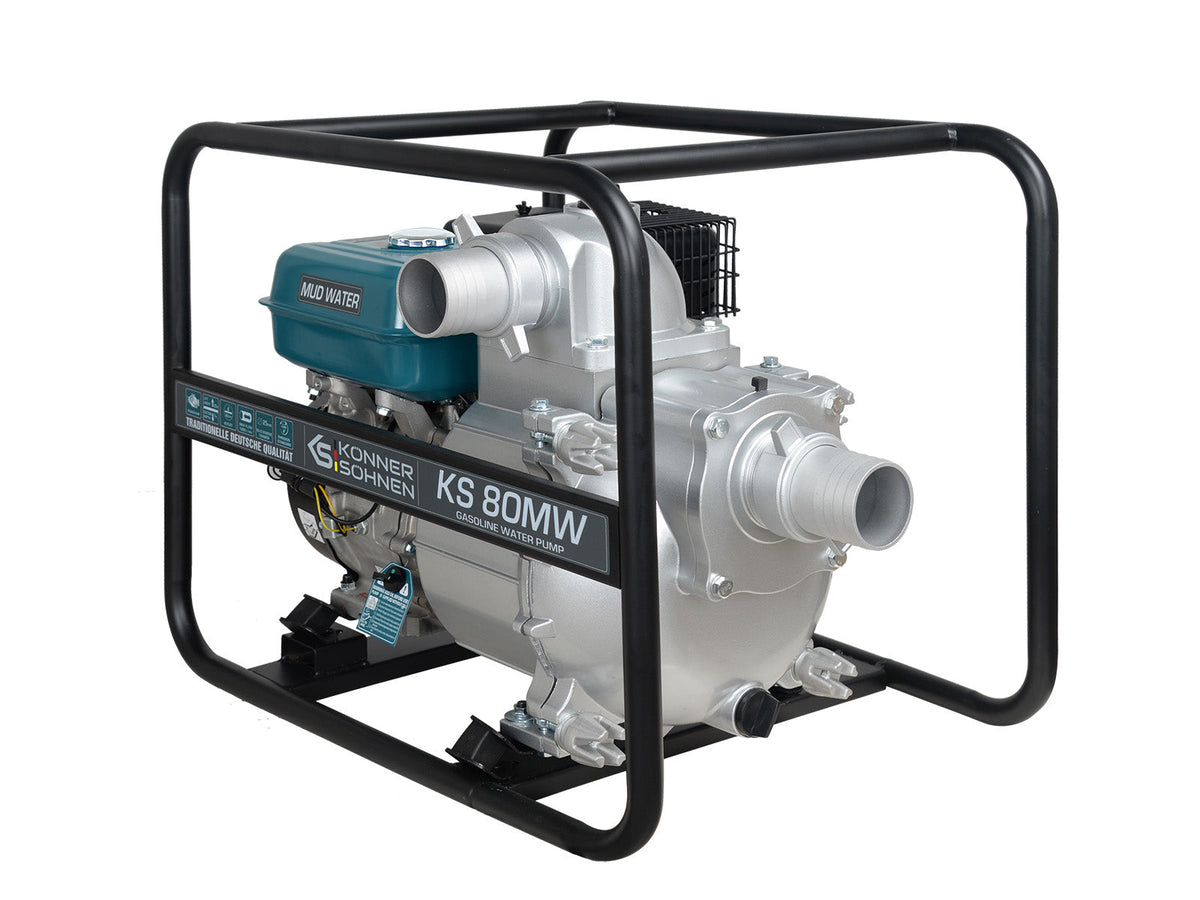

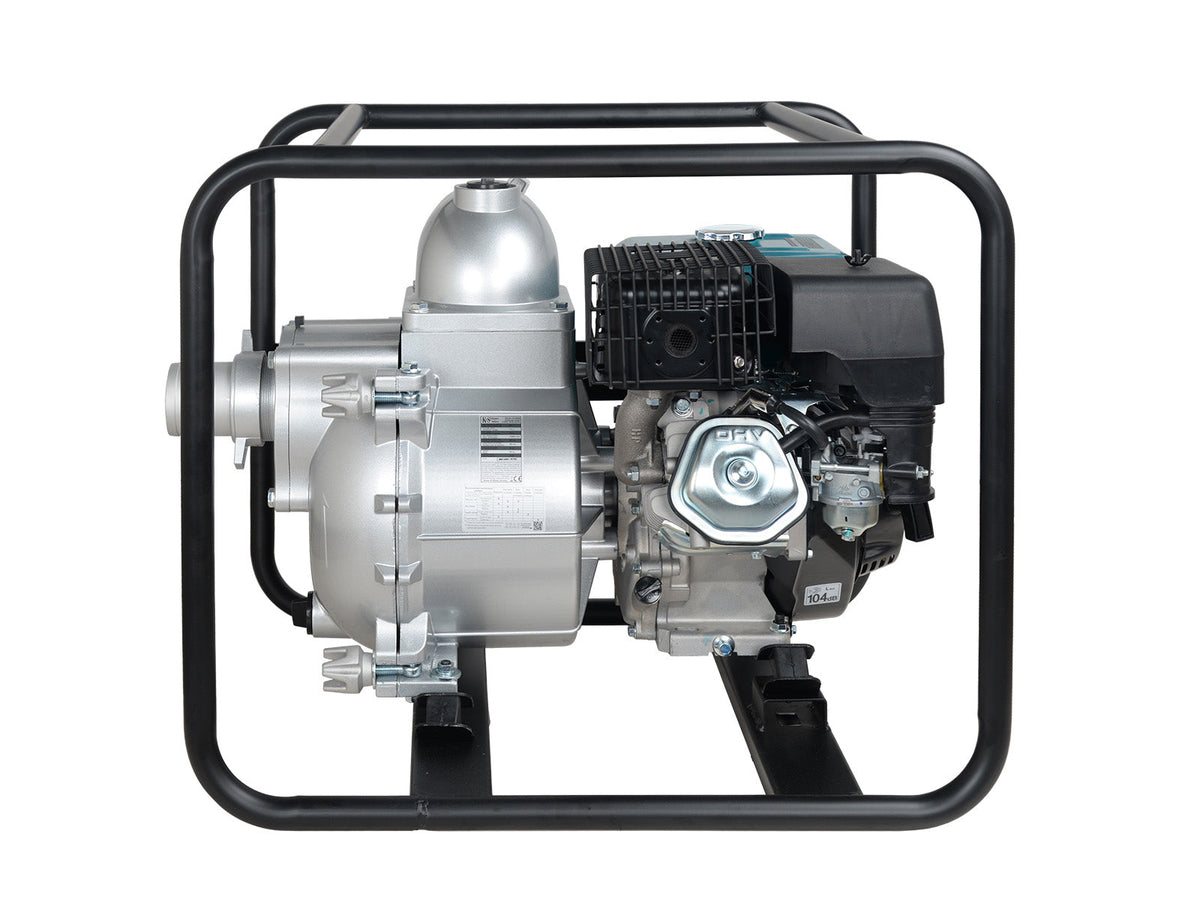

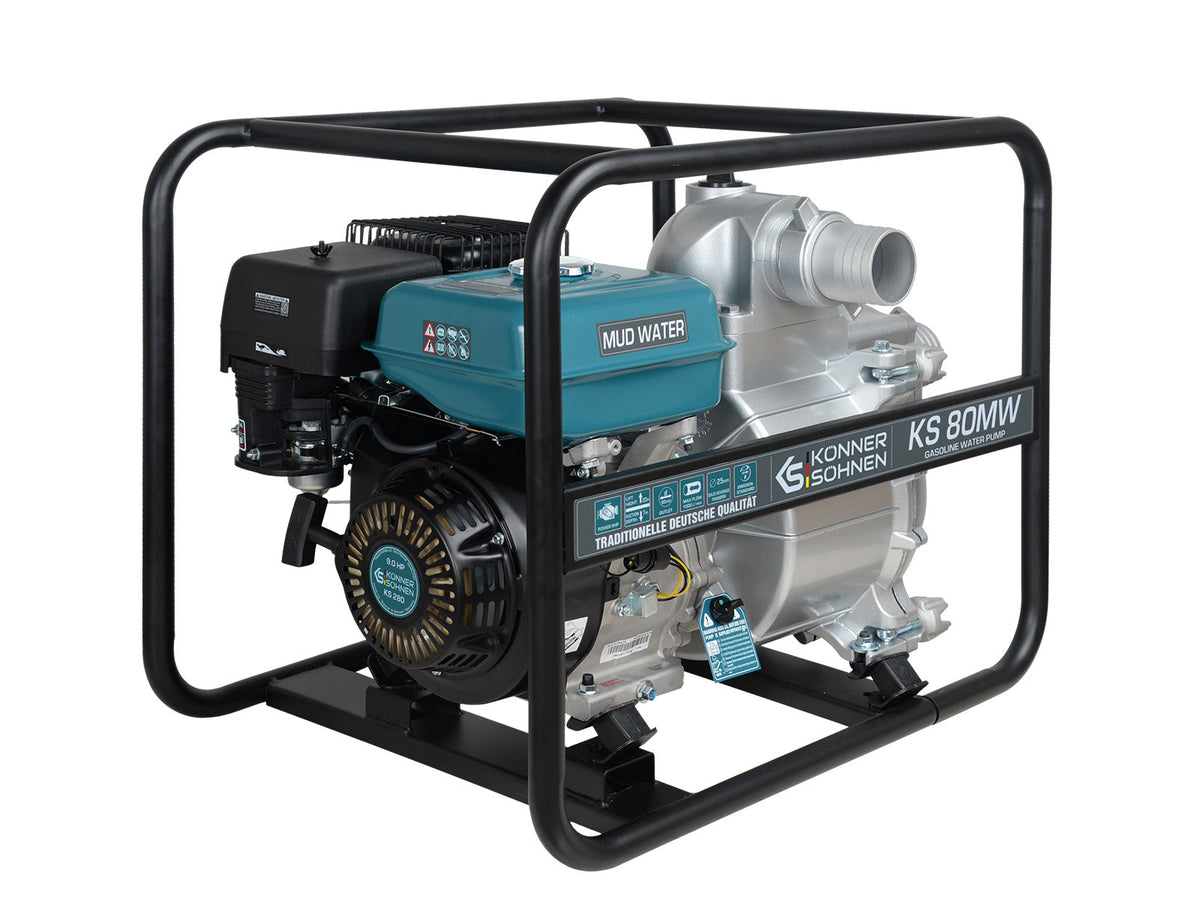

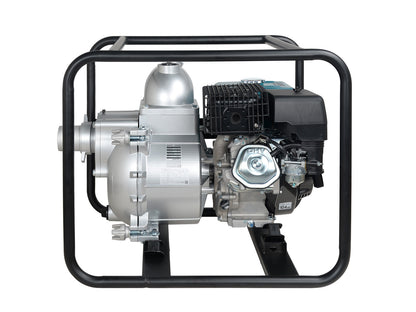

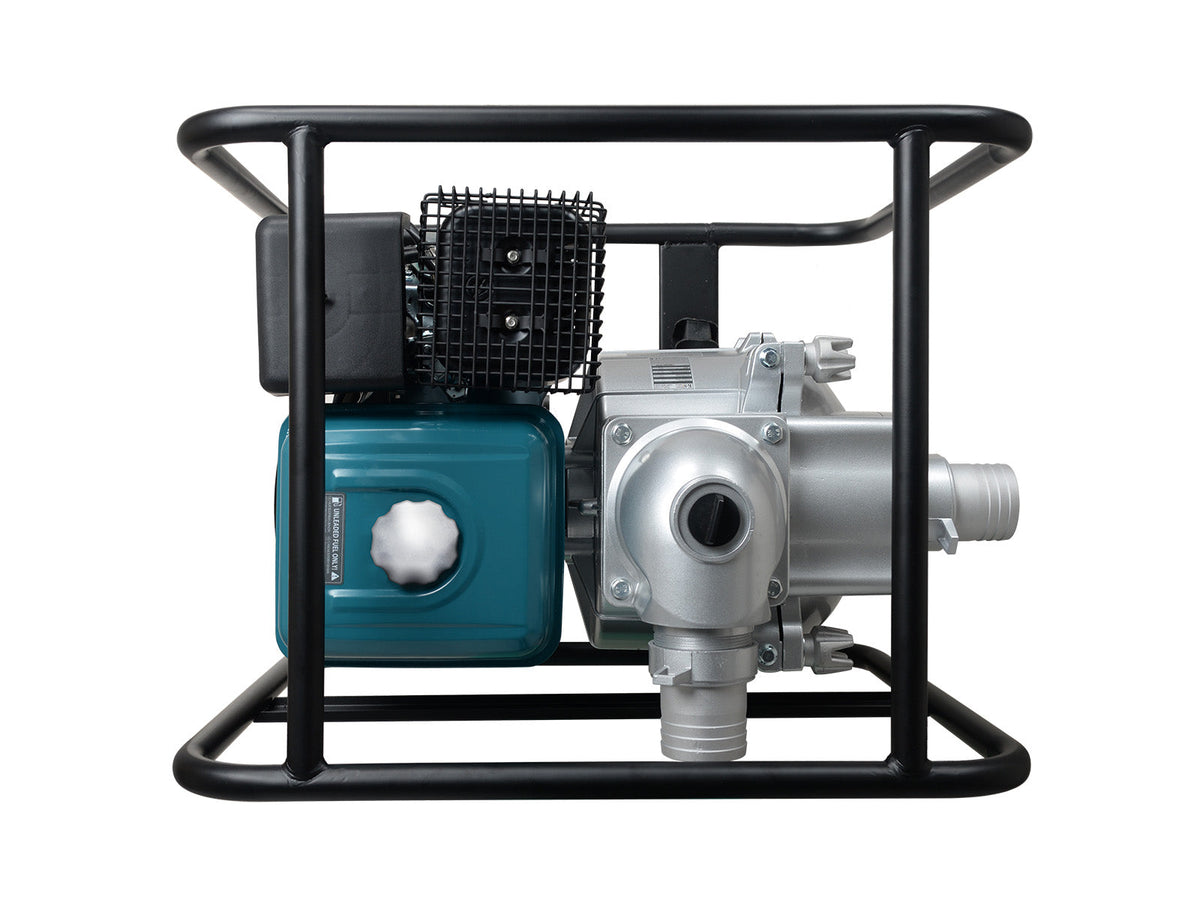

Motor-driven sludge pump KS 80MW – Könner & Söhnen

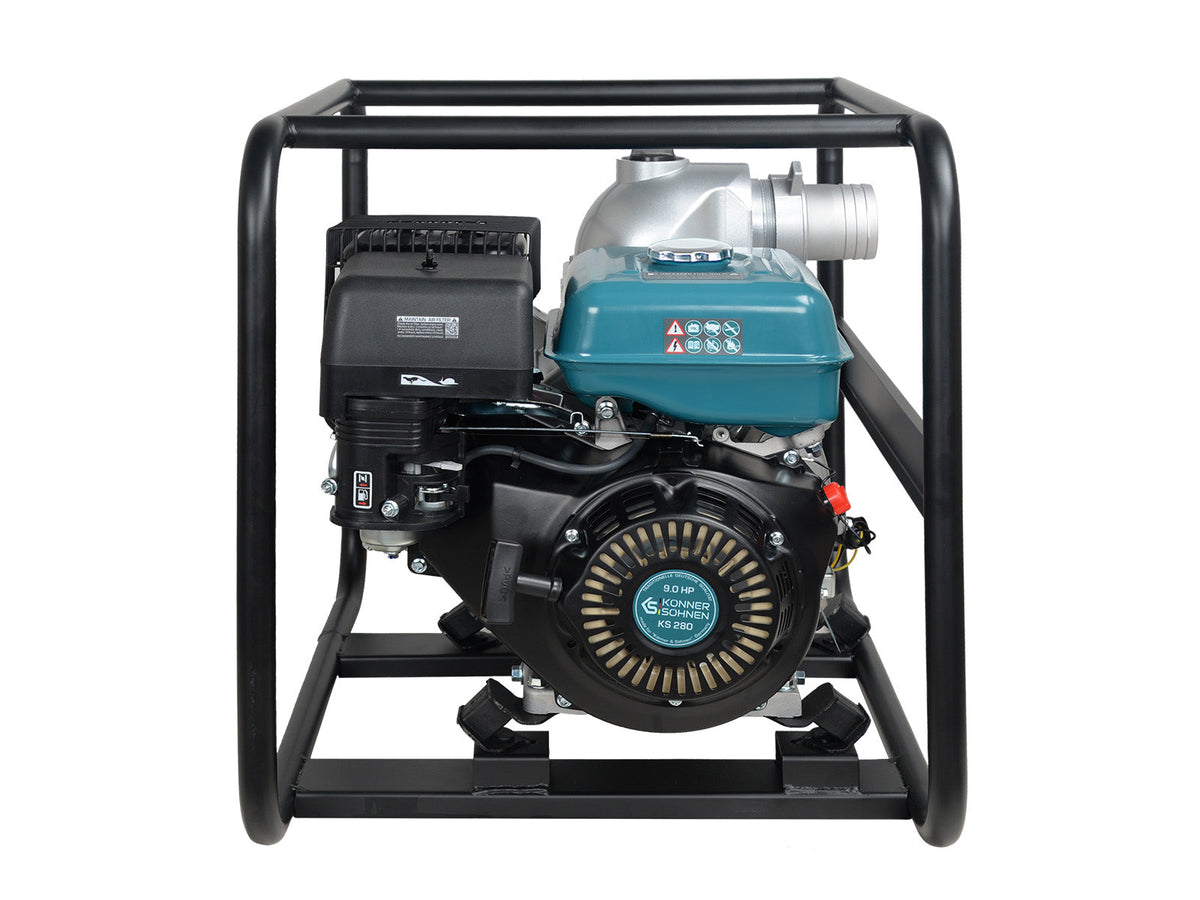

Könner & Söhnen brand engines:Every engine has an individual serial number for production quality control and technical maintenance. Könner & Söhnen engines are characterized by easy starting and reduced vibration.
Individual serial numbers on each engine:
Every engine has an individual serial number for production quality control and technical maintenance. Könner & Söhnen engines are characterized by easy starting and reduced vibration.
Equipment:
"Könner & Söhnen" water pumps feature a die-cast, high-strength aluminum housing that is resistant to corrosion, temperature influences, and deformation. The water pumps are equipped with an oversized steel fuel tank, which extends operating time without refueling.
Accessories:

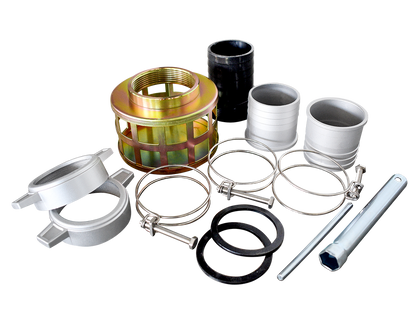

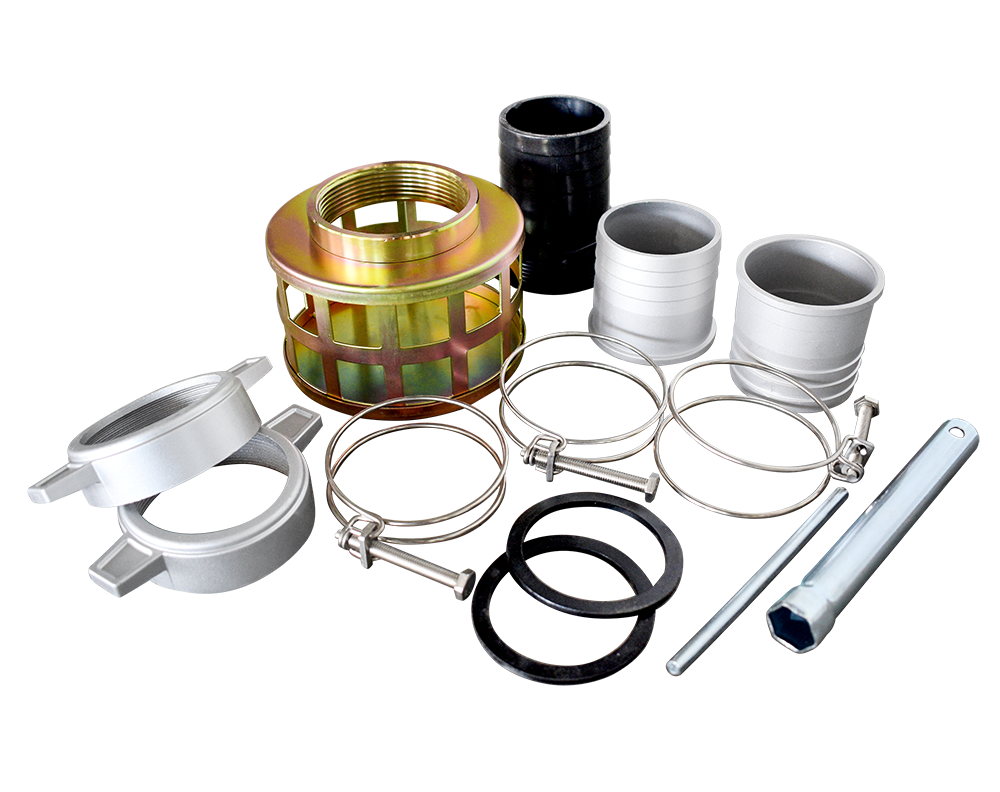

Water pumps are supplied complete with the following accessories: water filter, mounting kit, spark plug wrench, hose connector set.
Reinforced frame:
All "Könner & Söhnen" water pumps feature a reinforced steel frame for heavy-duty operation. The reinforced steel frame protects the water pump from damage during operation and transport.
Technical data
| Engine model | KS 280 |
| Engine displacement, cm3 | 269 |
| Engine power, HP | 9 |
| Fuel tank capacity, l | 6 |
| Engine oil capacity, l | 1.1 |
| Noise level Lpa (7m)/Lwa, dB | 79/104 |
| Maximum capacity, l/min | 1000 |
| Rated speed, rpm | 3600 |
| Delivery head, m | 20 |
| Suction height, m | 7 |
| Outlet diameter, mm | 80 |
| Inlet diameter, mm | 80 |
| Net dimensions (LxWxH), mm | 720x535x600 |
| Gross dimensions (LxWxH), mm | 725×540×600 |
| Net weight, kg | 60 |
