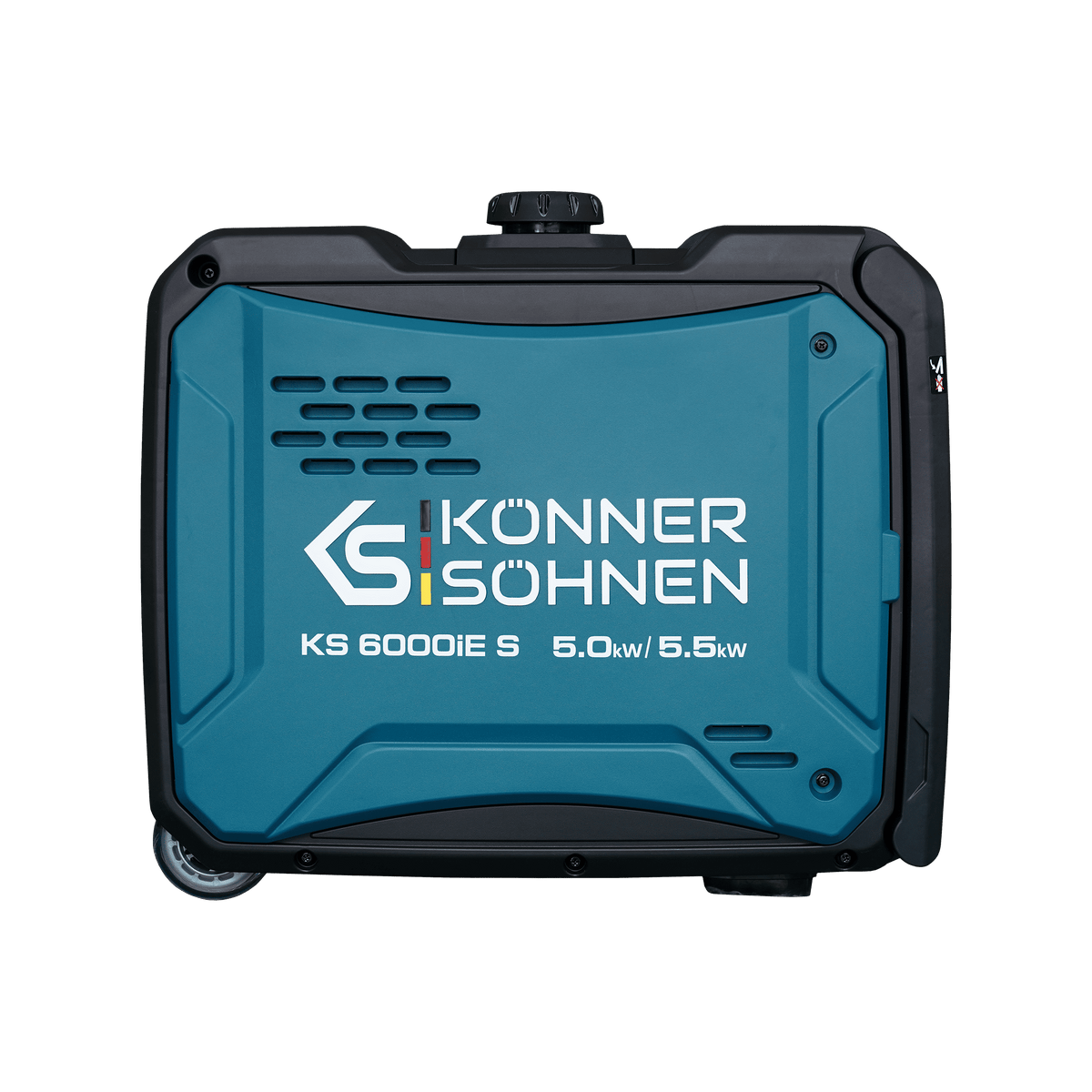

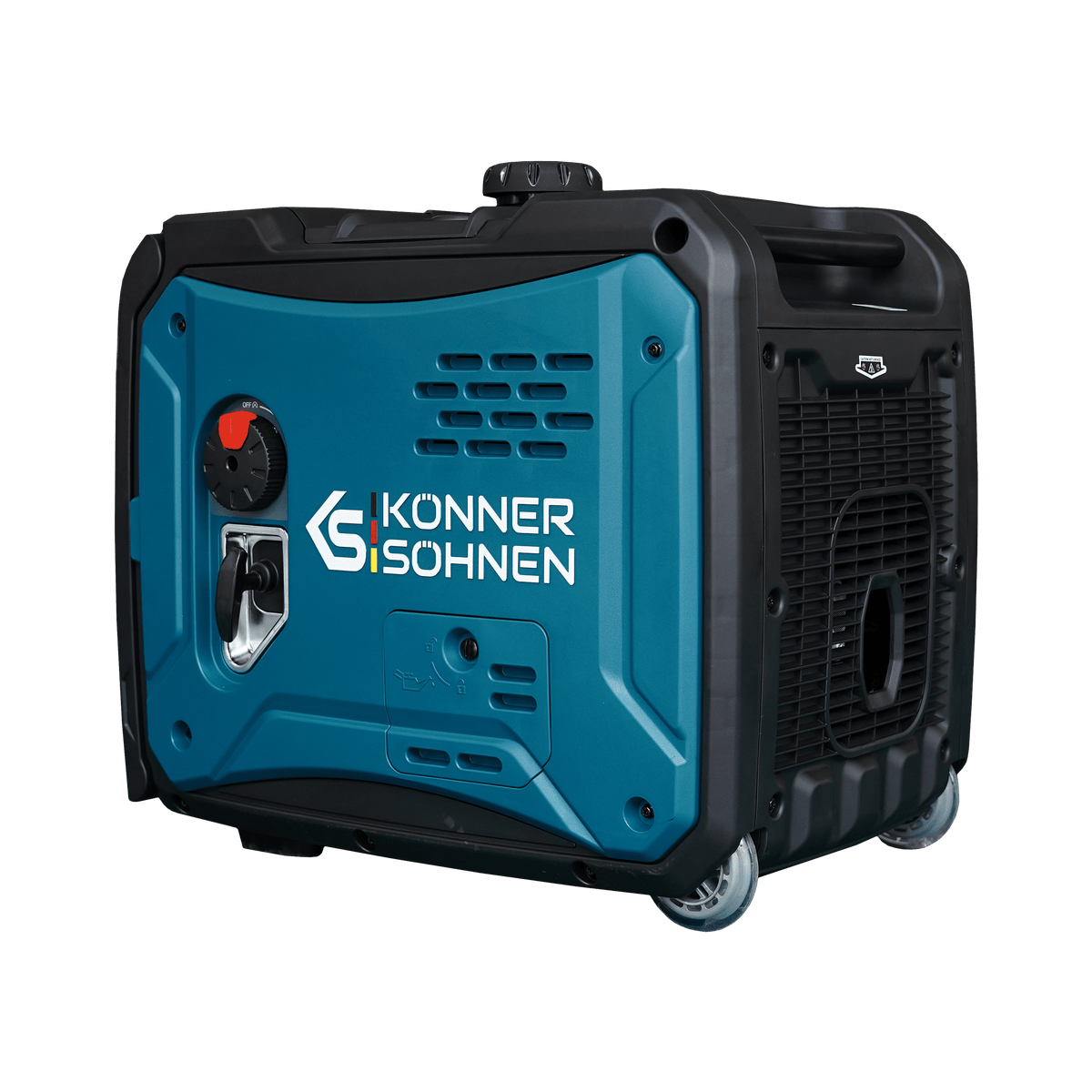

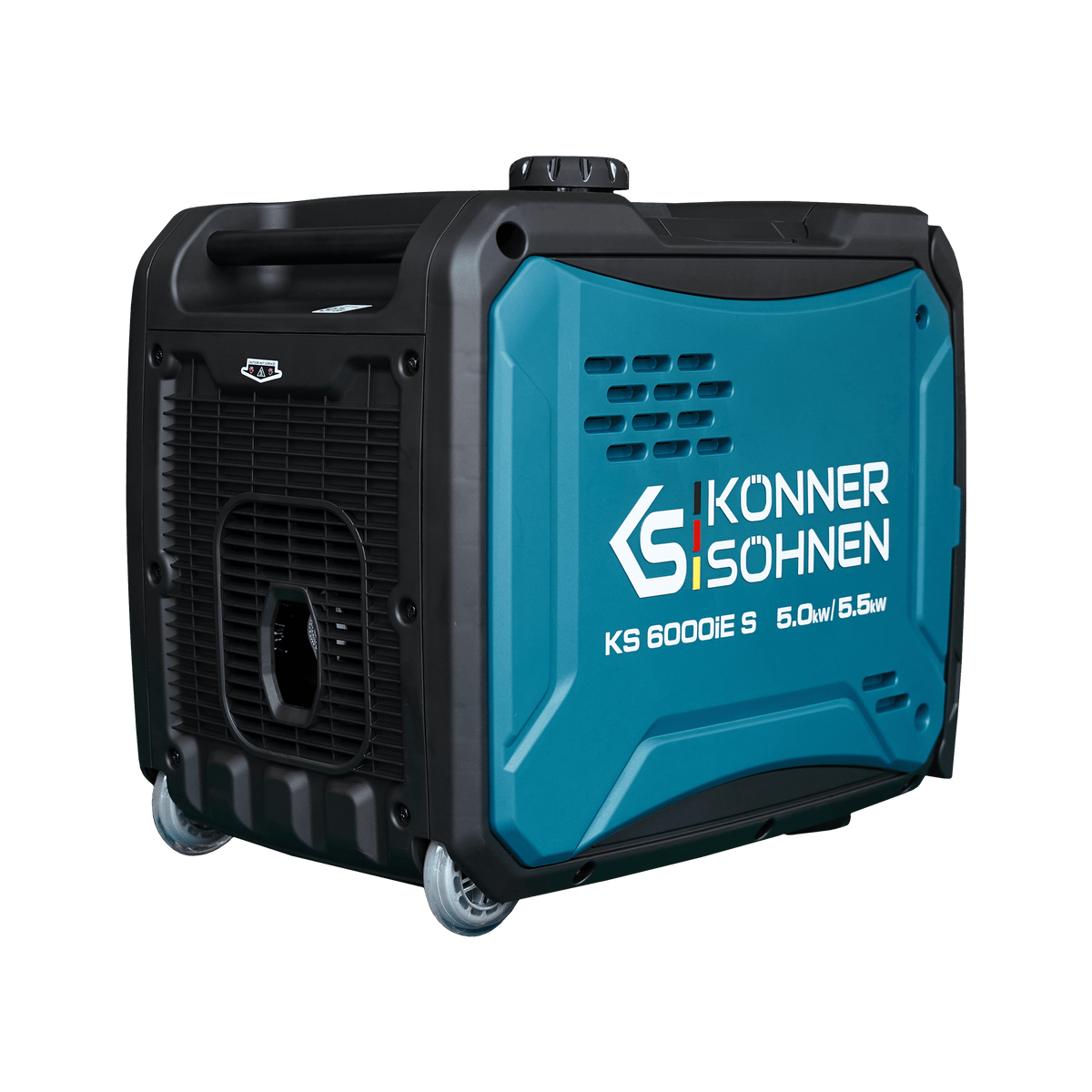

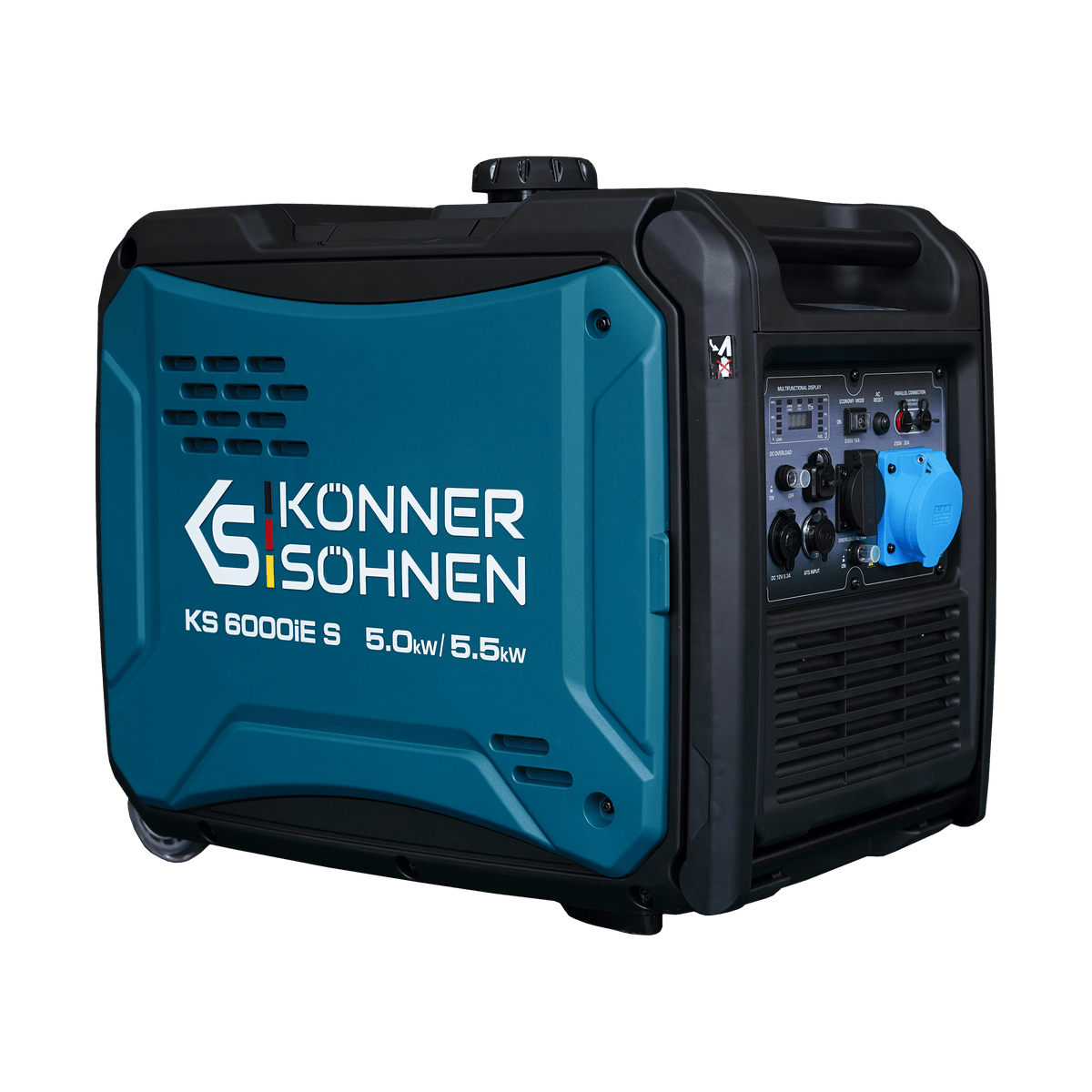

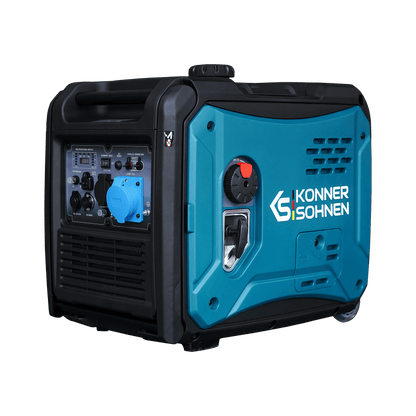

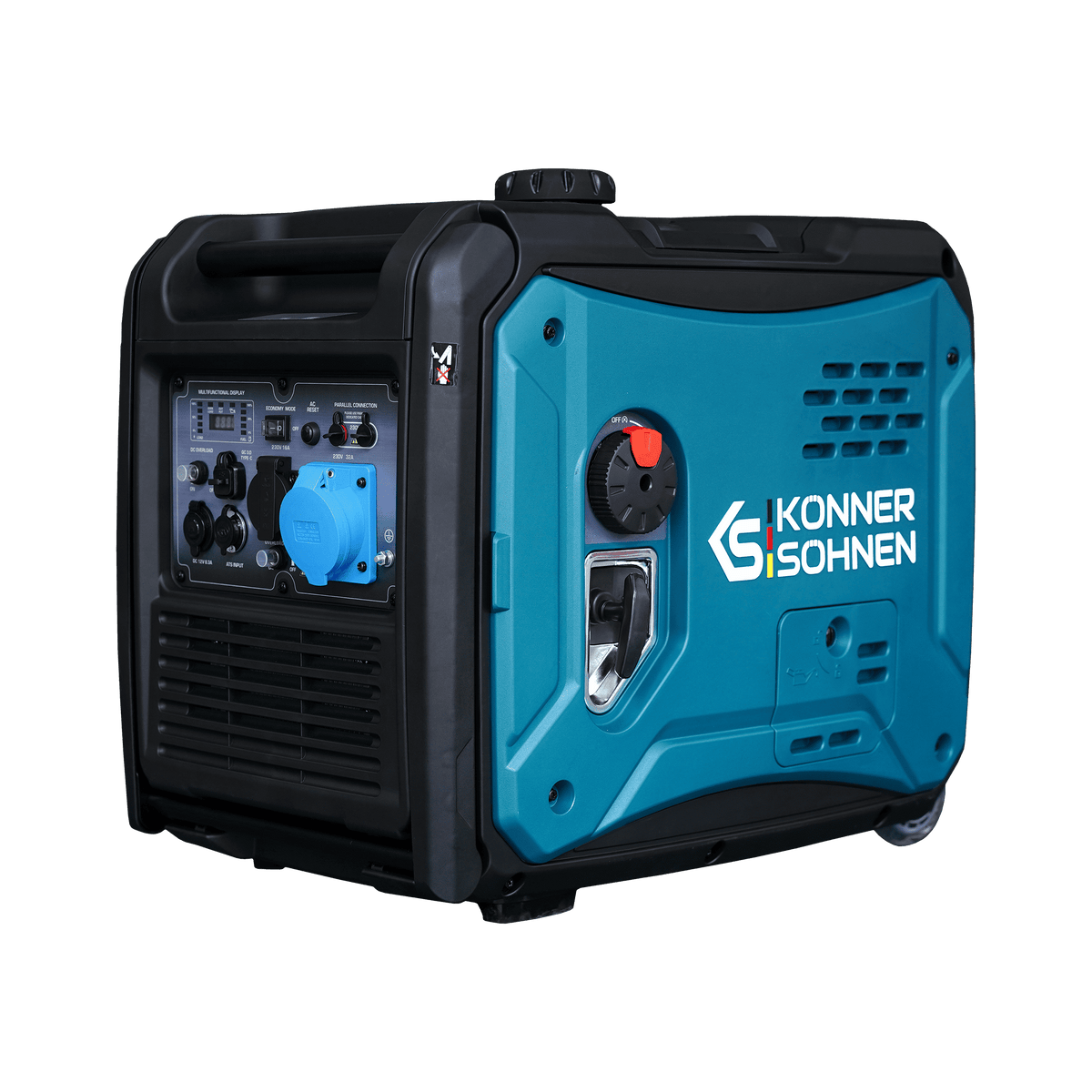

Inverter Generator KS 6000iE S
Könner & Söhnen practical and reliable generator provides ideal voltage and adapts to changing loads.
Multifunctional 6-in-1 LED display and ergonomic control panel for easy operation.
High-quality materials and construction ensure a long service life for the generator.
Advantages and Equipment
- Pure Sine Wave: Built-in inverter module with microprocessor control manages the technical processes of the generator and produces 230 V 50 Hz sine wave voltage. This ensures reliable operation even for sensitive electronic devices.
- Robust Engine: The robust Könner & Söhnen engine meets all European quality standards, including the latest EURO-V emission standards. The sturdy K&S industrial engine features an individual serial number that can be used to monitor production and service quality.
- Eco Mode: The ergonomic control panel is equipped with an ECO mode switch. This mode reduces fuel consumption at low loads due to lower engine speeds by up to 50%.

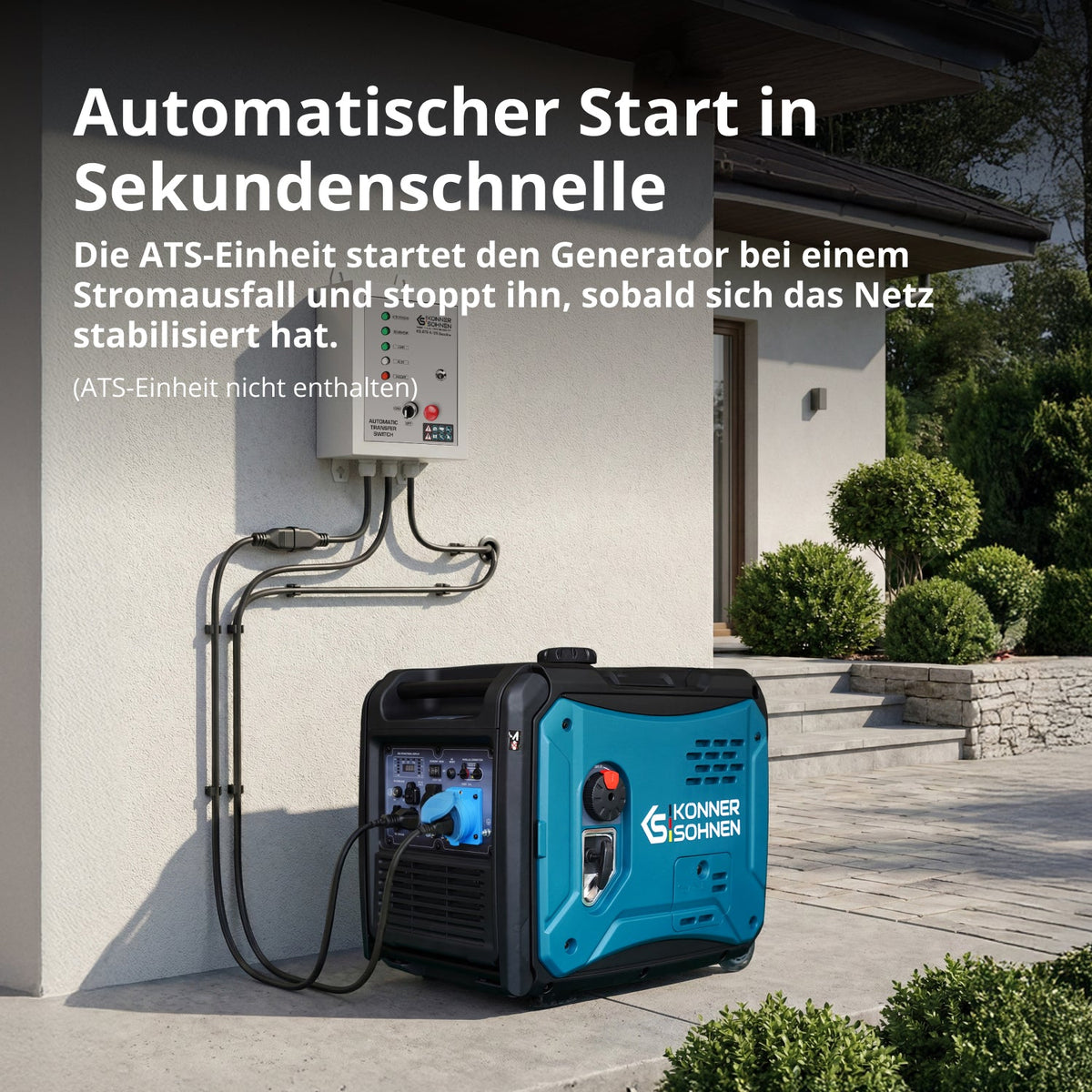

- ATS Terminal: The ATS (Automatic Transfer Switch) unit automatically starts the generator and transfers the load when the main power supply is interrupted, and automatically stops the generator once the main power is restored. The generator is equipped with an ATS terminal (GX 20, 7-pin) for the ATS 4/25 Gasoline switch box.
- Alternator with Copper Winding: The high-quality brushless alternator with permanent magnets and 100% copper windings can withstand high loads, thereby ensuring long-term and reliable generator operation.

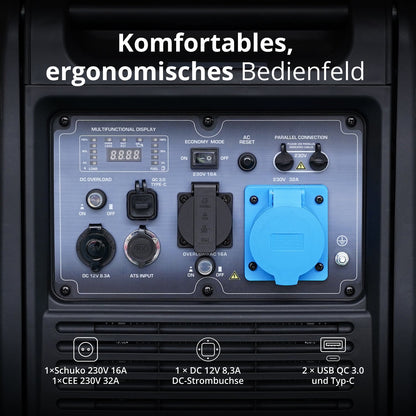

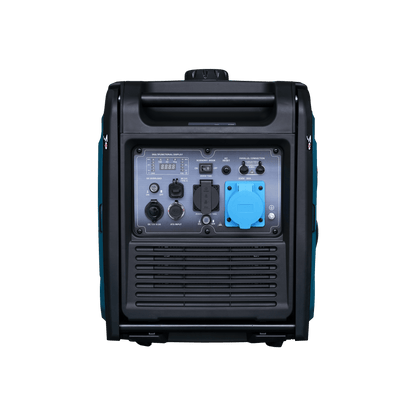

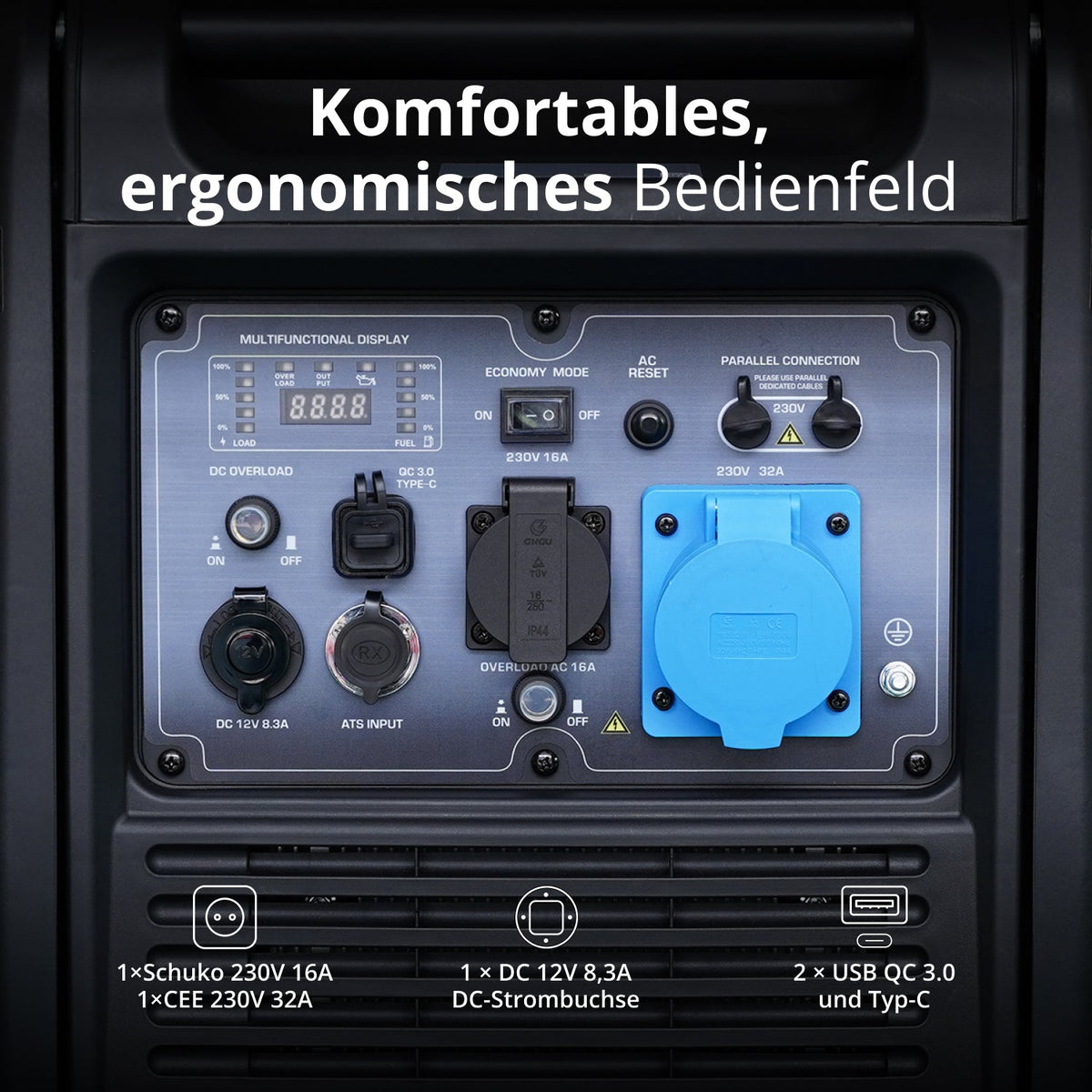

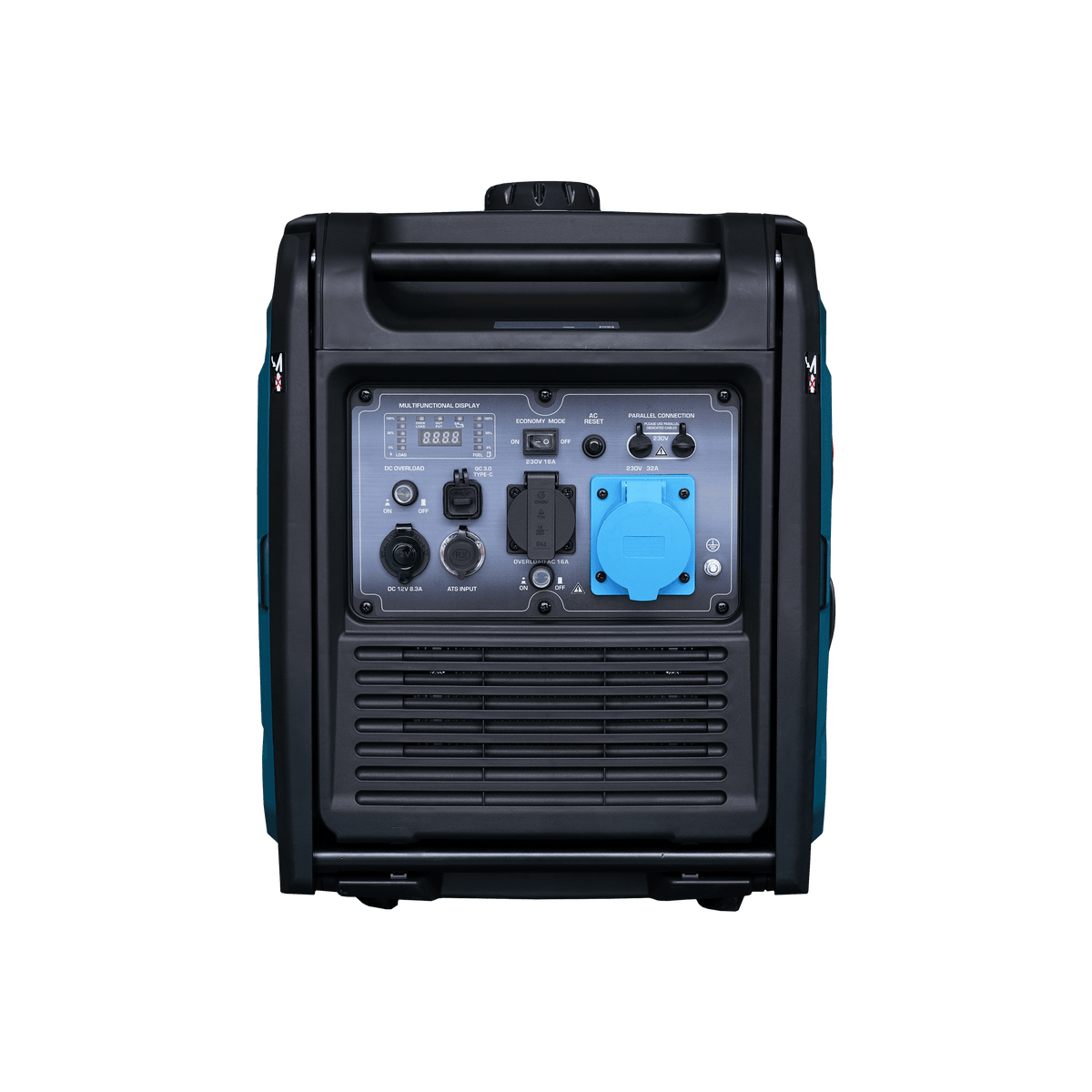

- Ergonomic Control Panel: Convenient arrangement of all basic functions: multifunctional LED display (voltage, frequency, hour meter), operation status indicators: overload and short-circuit protection, low-oil alarm, reset button to reset the control system and restore power supply, parallel connection port, two USB outputs (5 V/1A, 5 V/2.1A), 230 V socket, and earthing terminal.

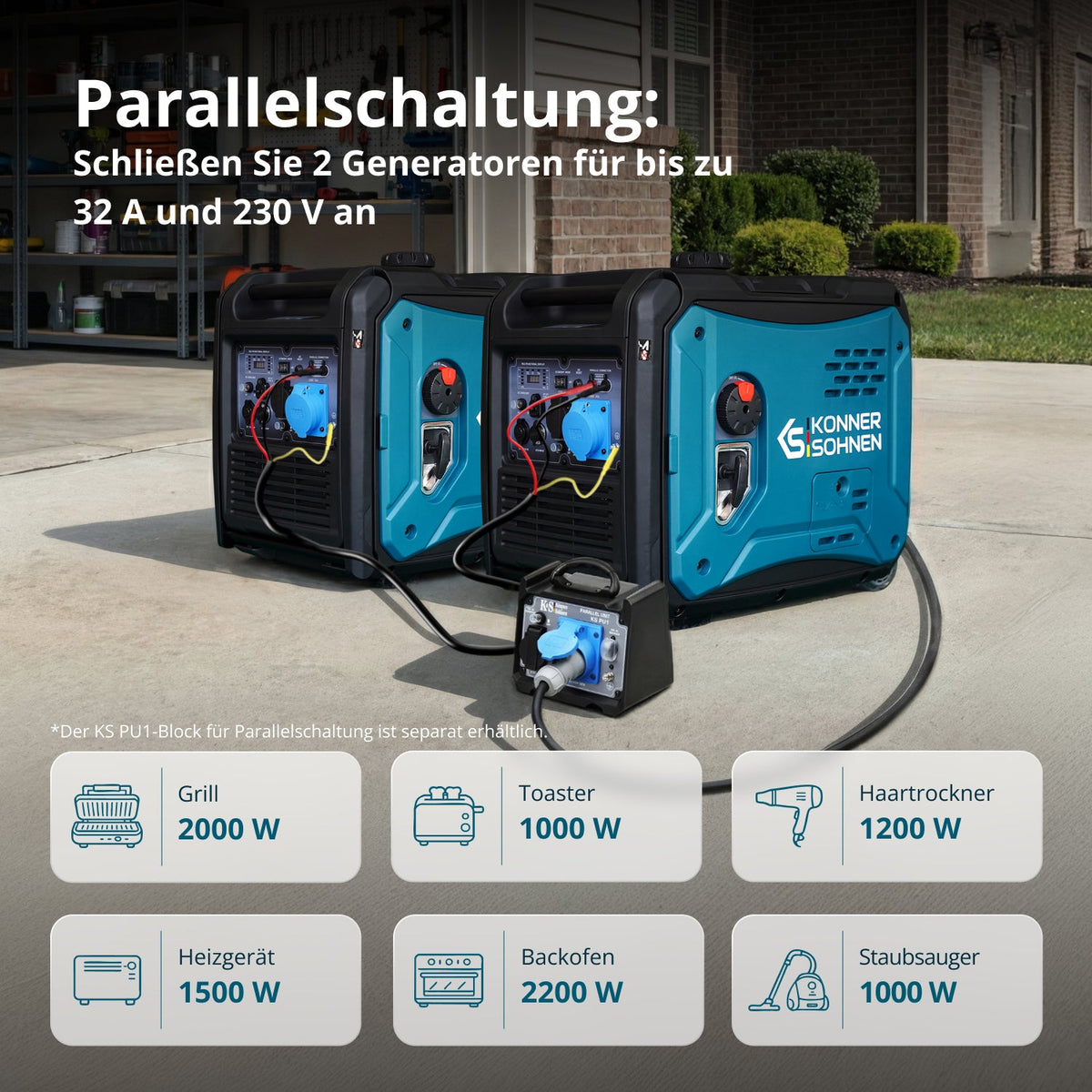

- Parallel Connection: The inverter generators are also equipped with a parallel connection function that provides double the power. You can couple two generators and connect devices with higher power requirements.
- Low Noise Level: The generator is equipped with a soundproof enclosure with a minimum noise level of 70 dB (7 m) for easier operation. This housing is equipped with handles and wheels for easy handling and an even wider range of applications.

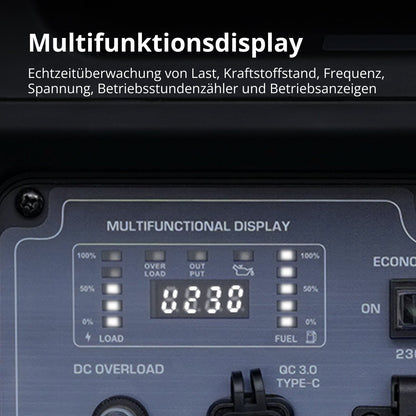

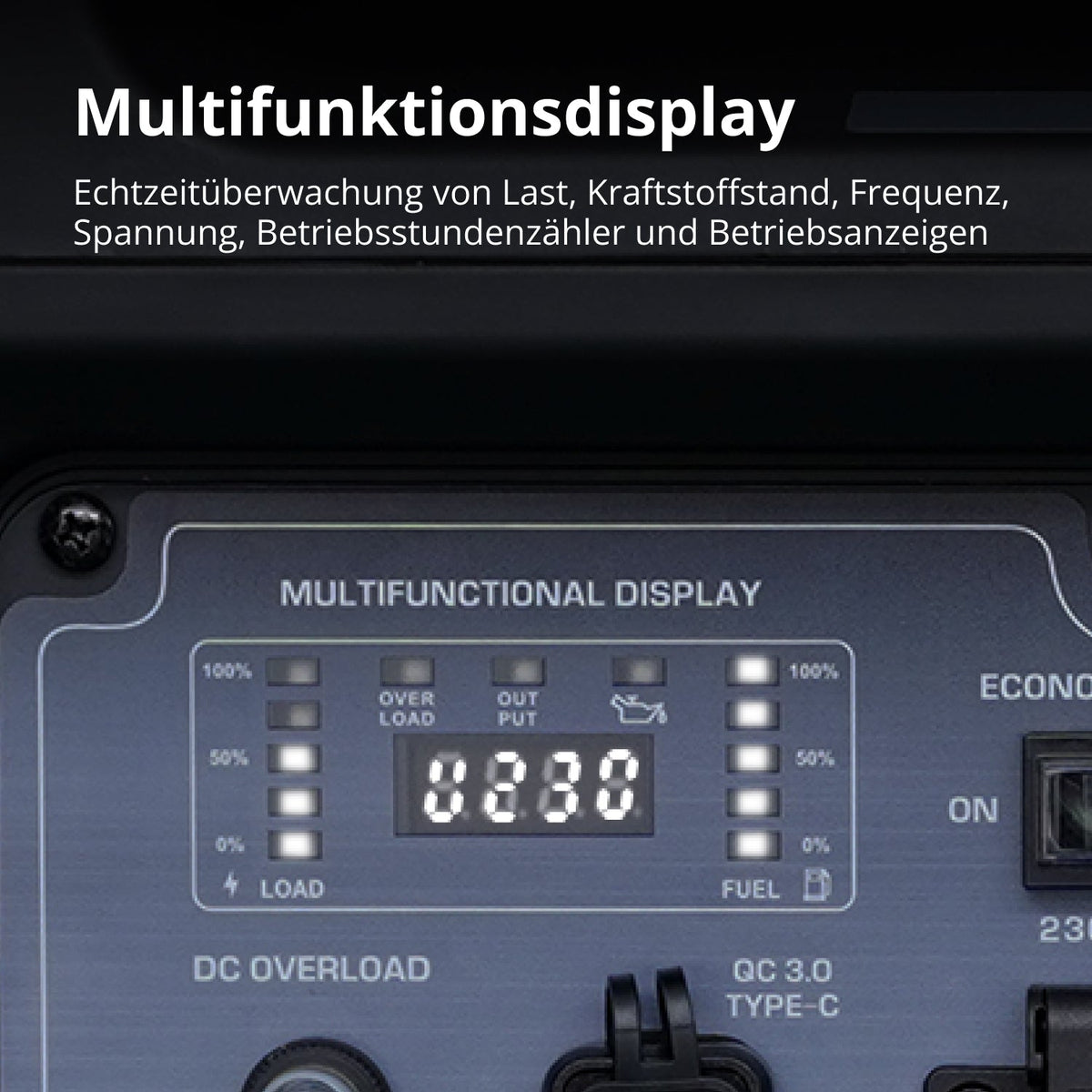

- 6-in-1 Multifunctional LED Display: Monitoring system for all key operating status indicators: overload protection, low-oil alarm, 6-in-1 multifunctional LED display (load indicator, fuel gauge, frequency, voltage, hour meter; oil level indicator, overload indicator, operating status indicator).

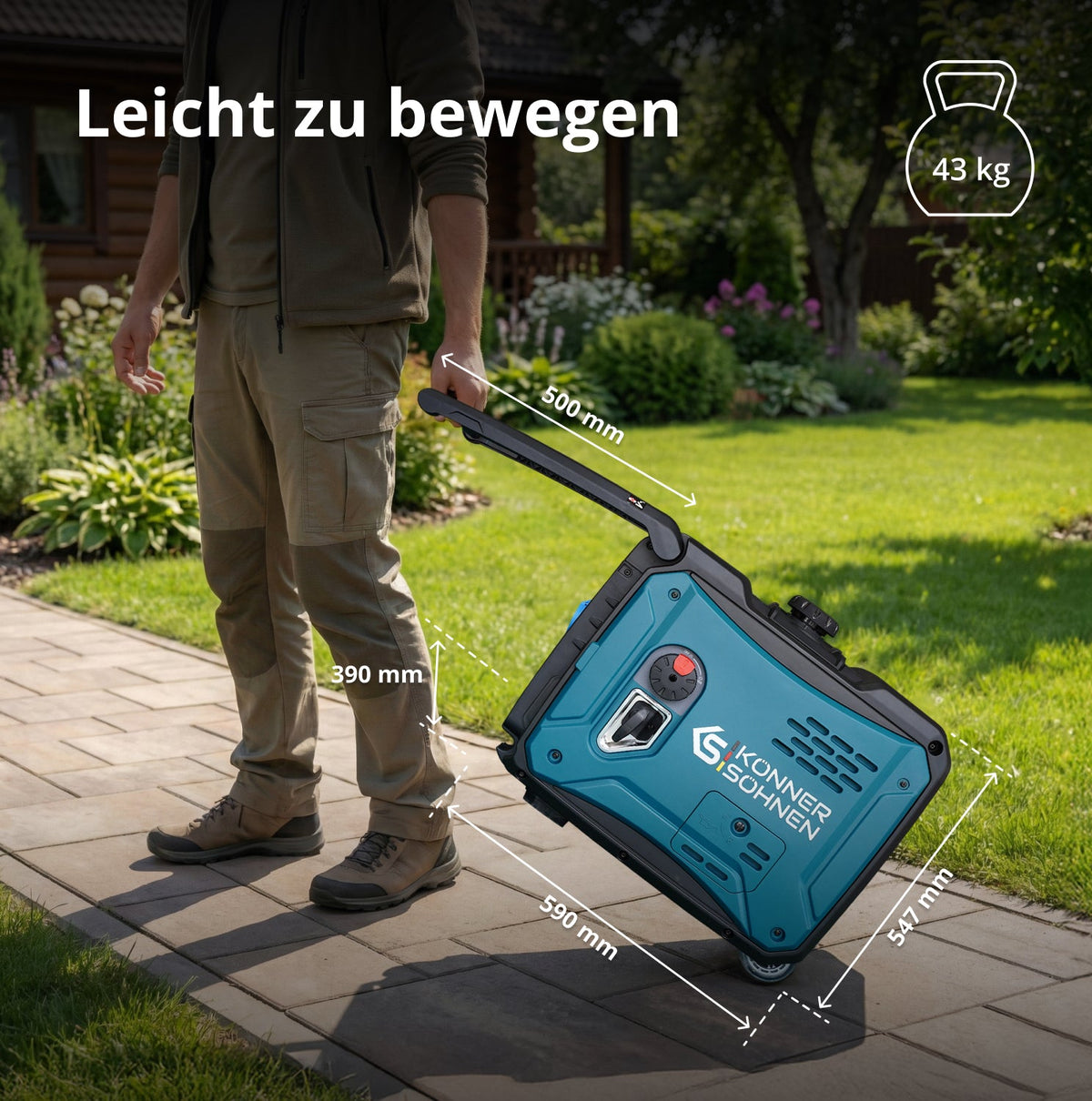

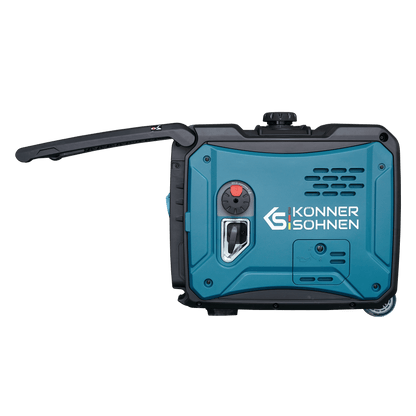

- Easy Transport: Könner & Söhnen inverter generators are equipped with a transport system for convenient handling. Two wheels and a handle make it easier to transport the generator for mobile applications.
Additional Product Features
Fuel and cost efficiency thanks to the ECO mode.
Practical handle and wheels for easy mobility.
Technical Data
| Operating voltage, V | 230 |
| Maximum power, kW | 5.5 |
| Rated power, kW | 5 |
| Power factor, cos φ | 1 |
| Frequency, Hz | 50 |
| Maximum current per phase, A | 23.9 |
| Sockets | 1 x Schuko 230 V, 1 x CEE 230 V 32 A |

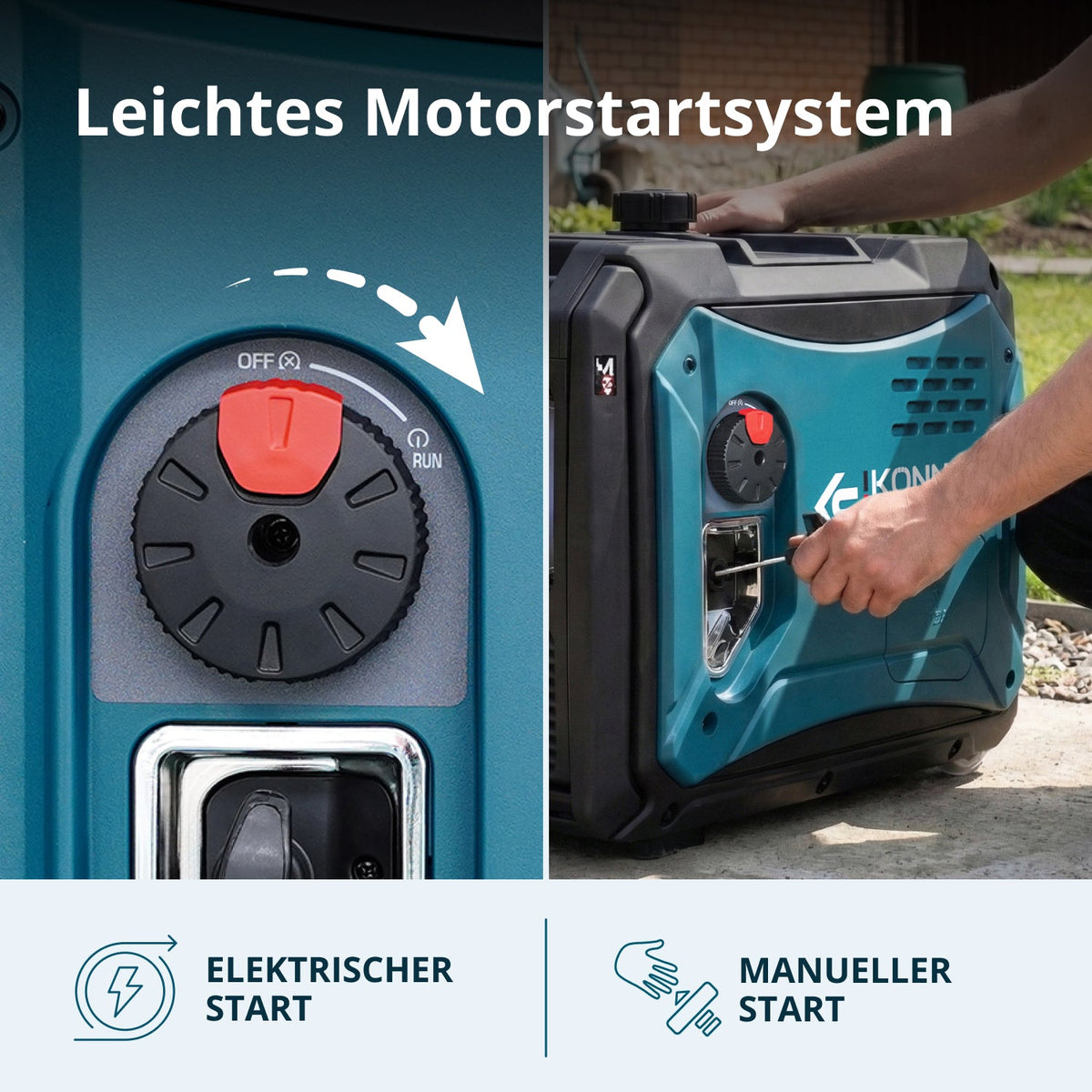

| Starter | Manual/Electric |
| Fuel tank capacity, l | 14.5 |
| Run time at 50% load, h*** | 7 |
| LED display | Multifunctional LED display: load, fuel level, frequency, voltage, hour meter; oil level indicator, overload indicator, operation indicator. |
| Noise level Lpa (7m)/Lwa, dB | 70/97 |
| 12V socket, A | 12V/8.3A |
| USB ports | USB QC3.0 + Type C |
| Engine model | KS 240i |
| Engine displacement, cm3 | 223 |
| Engine type | Gasoline 1-cylinder, 4-stroke, air-cooled |
| Engine power, HP | 7.5 |
| Parallel connection | + |
| ATS terminal | + |
| Engine oil capacity, l | 0.65 |
| Alternator winding | Copper |
| Protection class | IP23M |
| Equipment | Generator, packaging, manual, spark plug wrench, PH2 screwdriver 6.0 mm, accessory bag |
| Gross dimensions (LxWxH), mm | 715x525x640 |
| Net weight, kg | 43 |
