Produktbeschreibung
"Könner & Söhnen" Petrol Generator KS 12-1E 1/3 ATSR
Könner & Söhnen's advanced phase switching system makes the generator versatile.
Convenience and comfort: With the option to connect an ATS, there is no need to manually start the generator during a power outage.
Increased durability: Alternators with 100% copper windings are more durable than those with aluminum windings.
Advantages and Equipment
- Powerful Engine: Powerful and robust air-cooled single-cylinder four-stroke engine (18.5 hp). Every engine meets European and international standards for quality, efficiency, and environmental friendliness (including pollutant emissions and noise levels).
- Smooth and Convenient Electric Start System: The simplified starting system allows the engine to start quickly without significant effort. For simplicity, more powerful models are additionally equipped with an electric and/or auto-start system.

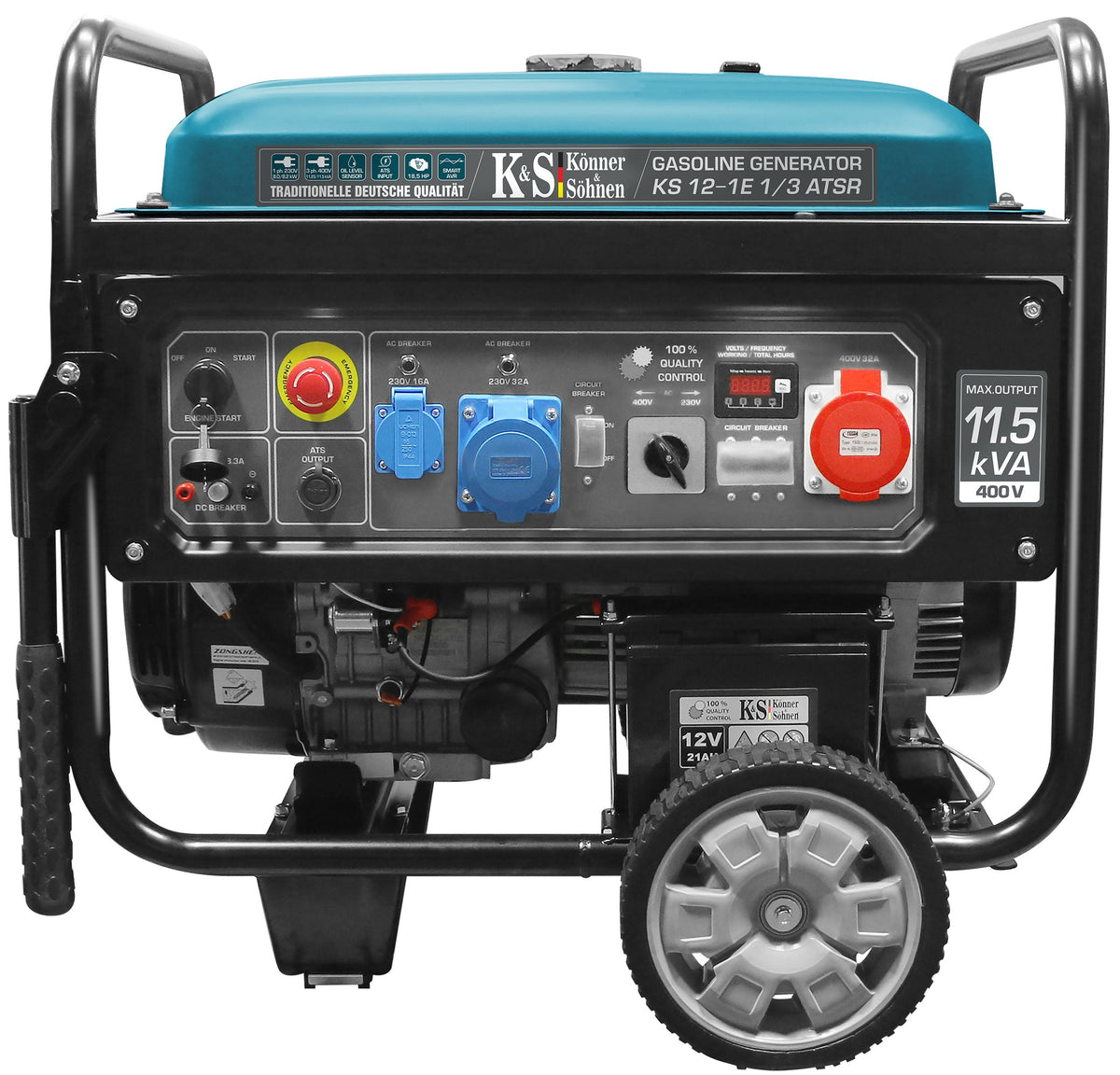

- Ergonomic Control Panel: The user-friendly, ergonomic control panel allows for easy operation of the entire unit, requires no special skills, and is equipped with sockets for the full power output of the generator. Each socket is fitted with a corresponding plug. Emergency stop button.

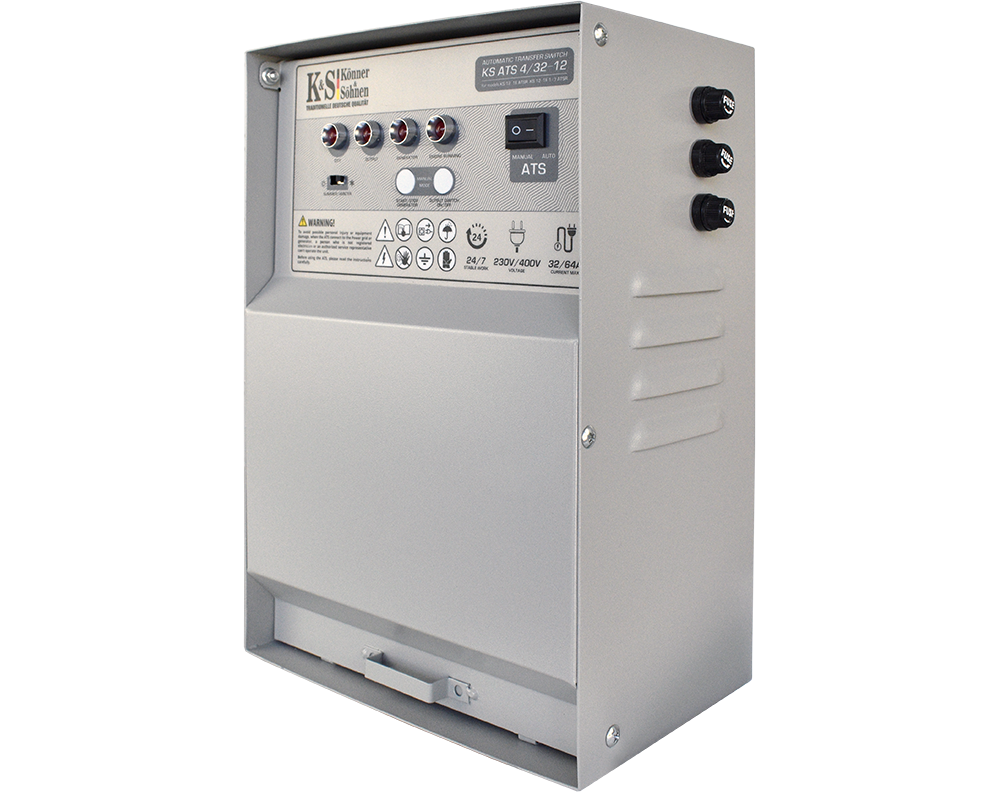

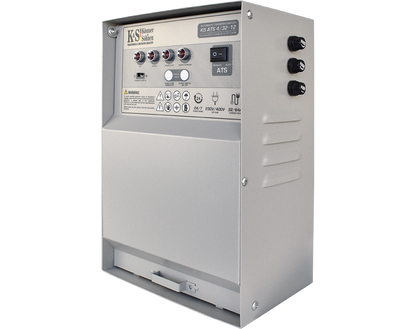

- ATS Connection: The ATS unit (automatic transfer switch to emergency power) automatically starts the generator and transfers the load when the main power supply is interrupted, and automatically stops the generator once the main power supply is restored.
- Alternator with Copper Winding: The "Könner & Söhnen" brand generators are equipped with a high-quality synchronous alternator with 100% copper winding. Only a copper winding can withstand the highest voltage overloads without damage, thereby ensuring long-term and reliable operation of the generator.
- Steel Tank: "Könner & Söhnen" generators are equipped with an enlarged steel fuel tank, which extends operating time per tank fill. The fuel gauge is located on the fuel tank for more convenient handling.
Additional Product Features
Thanks to the larger tank, you do not have to refuel the generator as often, which saves you time and effort.
You can easily monitor the status of the generator with the multifunctional LED display and take action if problems arise.
Technical Data
| Operating voltage, V | 230/400 |
| Max/Rated power (230V), kW | 8.2/8.0 |
| Power factor, cos φ | 1 (230V)/0,8 (400V) |
| Max/Rated power (400V), kVA | 11.5/11.25 |
| Frequency, Hz | 50** |
| Current (max.) 230V/400V, A | 35/17 |
| Sockets | 1 x Schuko 230 V, 1 x CEE 230 V 32 A, 1 x CEE 400 V 32 A |
| Fuel tank volume, l | 55 |
| LED display | Voltage in volts, frequency, hour meter, engine oil level |
| Noise level Lpa (7m)/Lwa, dB | 74/97 |
| Socket 12V, А | 12/8.3 |
| Engine model | KS 650 |
| Engine type | Petrol 1-cylinder, 4-stroke with air cooling |
| Engine power, hp/kW | 18.5/13.6 |
| Fuel type | Petrol engine |
| Engine oil capacity, l | 1.4 |
| Displacement, cm3 | 625 |
| Voltage regulator | Intelligent AVR system |
| Starter | Manual/Electric |
| Battery, Ah | 21 |
| Alternator winding | Copper |
| Protection class | IP23M |
| Net dimensions (LxWxH), mm | 790×705×680 |
| Gross dimensions (LxWxH), mm | 800×715×780 |
| Net weight, kg | 120 |
