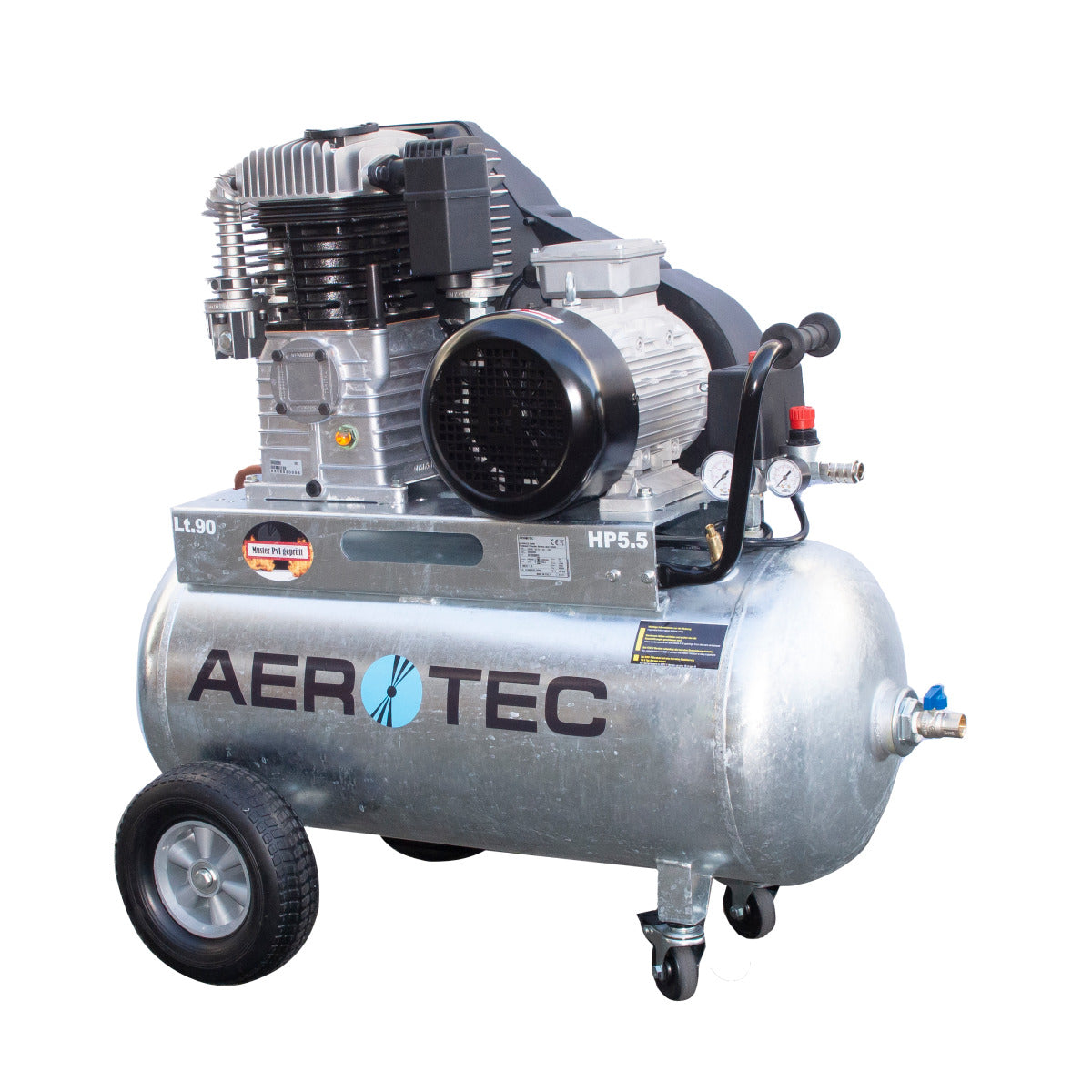

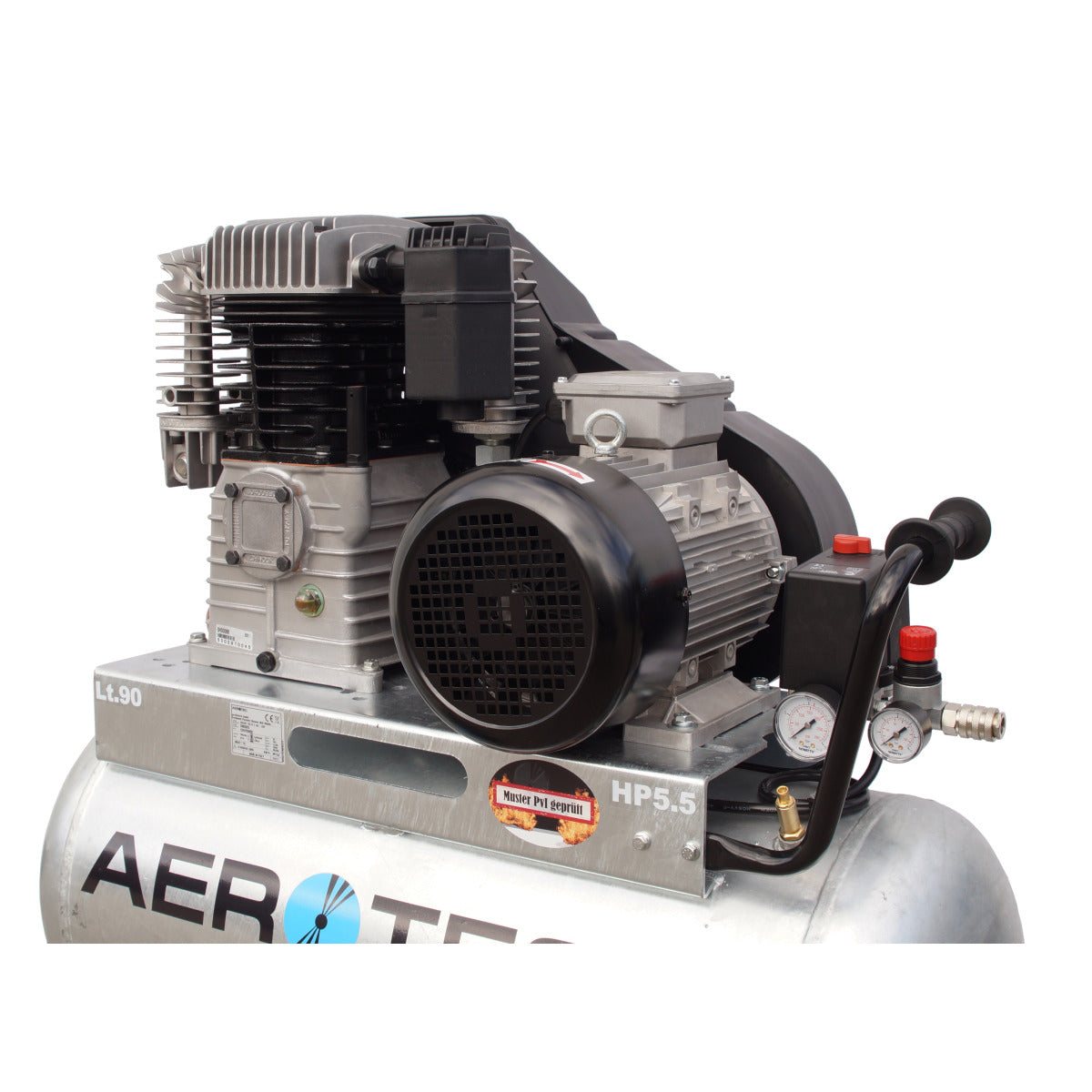

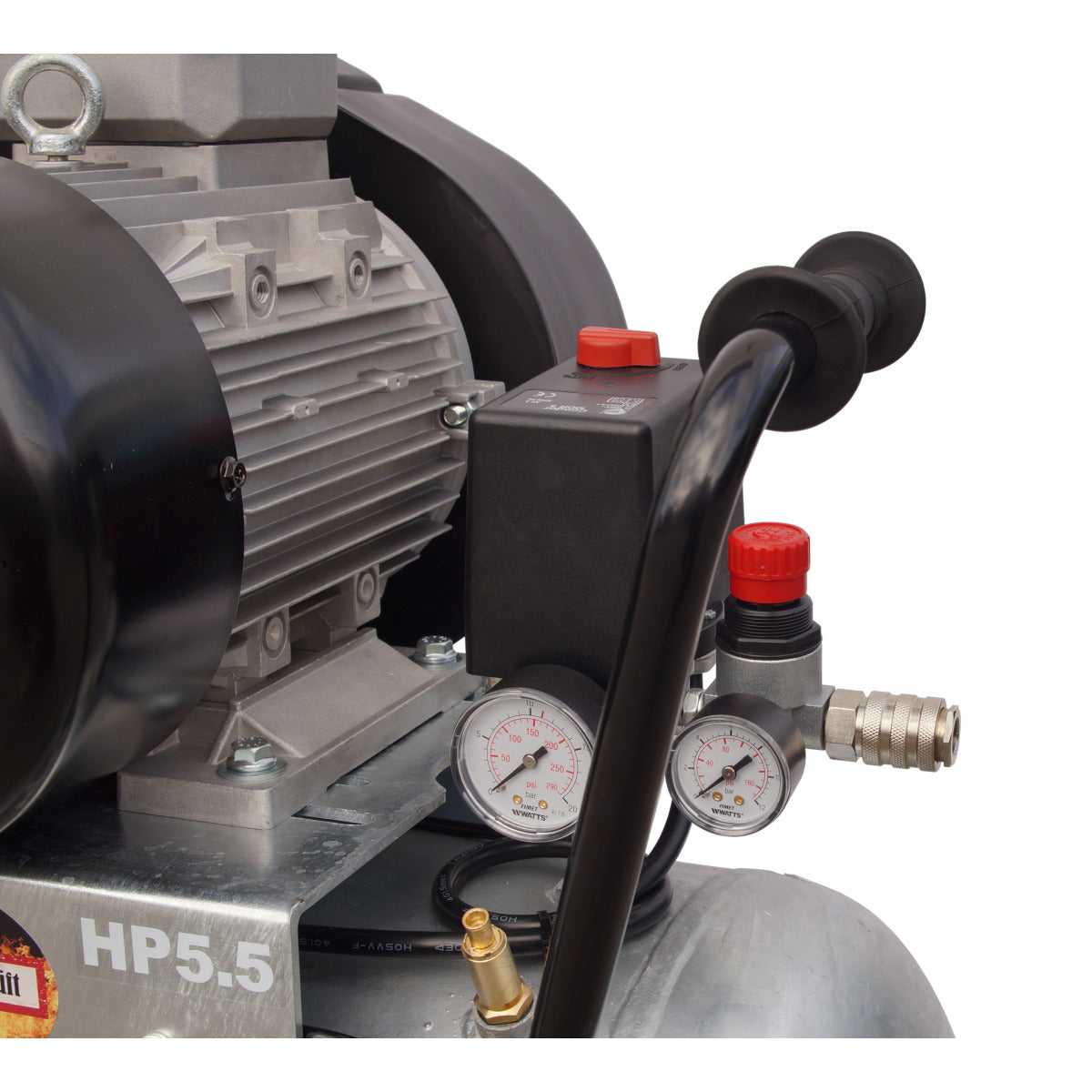

AEROTEC Piston Compressor AEROTEC 780-90 Z PRO
Piston compressor | Item number 25137803
Reliable compressed air technology for workshops and commercial use
The AEROTEC Piston Compressor AEROTEC 780-90 Z PRO is a piston compressor for on-demand compressed air supply in workshops and commercial settings. Its design and available performance data help to select the device specifically for the intended application.
With a motor output of 4 kW, an intake capacity of 690 l/min, and a maximum operating pressure of 10 bar, this model offers concrete performance values for comparison with the requirements of your compressed air tools.
The oil-lubricated design is tailored to the intended operating conditions.
Your benefits at a glance
- Compressed air performance: 690 l/min intake capacity and 520 l/min filling capacity.
- Motor output: 4 kW for the intended work area.
- Operating pressure: up to 10 bar according to manufacturer specifications.
- Compressed air tank: 90 l tank volume.
- Power supply: 400 V connection voltage.
- Noise level: 78 dB(A) sound pressure level according to manufacturer.
- Compressor speed: 1,200 rpm according to technical data.
- Equipment: Compressor system with galvanized compressed air tank.
For workshops, skilled trades, and commercial use
Whether operating compressed air tools, performing service work, or equipping a workshop: actual air consumption determines the appropriate compressor size. For this purpose, compare the filling capacity and operating pressure with the requirements of your tools.
Technical data
| Length (product) approx. | 1,100 mm |
|---|---|
| Width/depth (product) approx. | 550 mm |
| Height (product) approx. | 1,100 mm |
| Weight (net) approx. | 103.5 kg |
| Sound-insulated | No |
| Compressed air tank | ✔ |
| Connection voltage | 400 V |
| Motor output | 4 kW |
| Whisper-quiet | No |
| Sound power level Lw | 97 dB(A) |
| Sound pressure level Lp | 78 dB(A) |
| Oil-free / oil-lubricated | Oil-lubricated |
| Intake capacity approx. | 690 l/min |
| Filling capacity approx. | 520 l/min |
| Number of cylinders | 2 |
| Number of compression stages | 2 |
| Compressor speed | 1,200 rpm |
| Maximum pressure | 10 bar |
| Tank capacity | 90 l |
| Tank vertical / horizontal | Horizontal |
Conclusion: Compressed air to suit your needs
With a filling capacity of 520 l/min, an operating pressure of 10 bar, and a motor output of 4 kW, the AEROTEC Piston Compressor AEROTEC 780-90 Z PRO offers a clear basis for product selection. Anyone looking for a piston compressor for the described area of application can compare the technical data directly with their own compressed air requirements.
