Produktbeschreibung

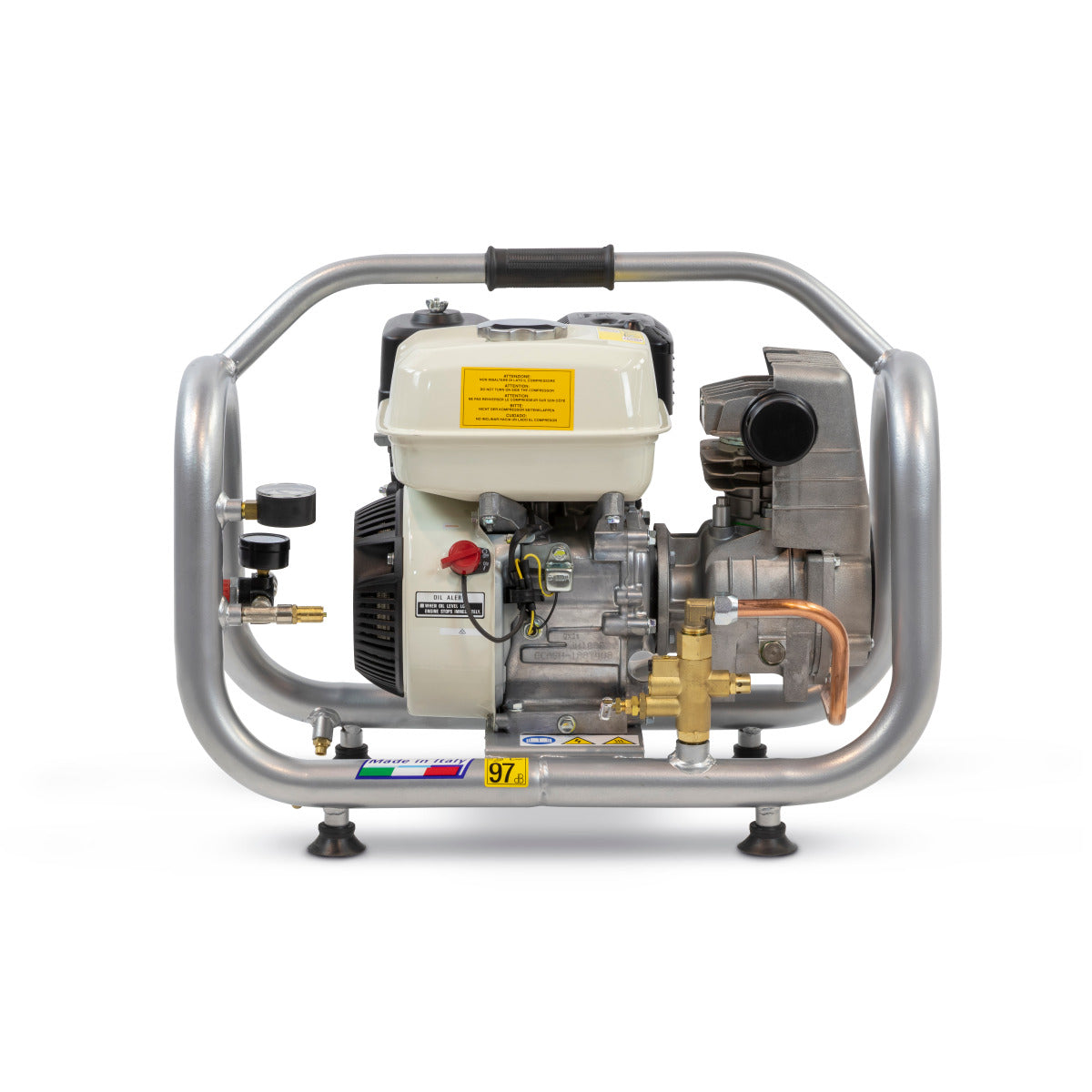

AEROTEC Petrol Compressor AEROTEC 400-2.5 HONDA
Petrol Compressor | Item number 25144000
Compressed air supply independent of the power grid
The AEROTEC Petrol Compressor AEROTEC 400-2.5 HONDA is a petrol-powered compressor for use in locations without a fixed power connection in workshops and industrial settings. Its design and the available performance data help in selecting the device specifically for the intended application.
With a motor output of 3.5 kW, an intake capacity of 350 l/min, and a maximum operating pressure of 10 bar, this model offers concrete performance figures for comparison with the requirements of your compressed air consumers.
The V-belt drive is part of the robust compressor construction.
Your benefits at a glance
- Compressed air output: 350 l/min intake capacity and 240 l/min air delivery.
- Motor output: 3.5 kW for the intended work area.
- Operating pressure: up to 10 bar according to manufacturer specifications.
- Compressed air tank: 2.5 l tank volume.
- Noise level: 78 dB(A) sound pressure level according to the manufacturer.
- Compressor speed: 3,400 rpm according to technical data.
- Drive technology: V-belt drive.
- Features: Due to its compact dimensions, it is ideal for construction site use.
For construction sites and mobile locations
When working without a stationary power supply, a petrol-powered compressor can facilitate the provision of compressed air. The air requirement of the connected tools and the permissible operating conditions are decisive for selection.
Technical data
| Length (product) approx. | 620 mm |
|---|---|
| Width/depth (product) approx. | 410 mm |
| Height (product) approx. | 480 mm |
| Weight (net) approx. | 28 kg |
| Drive motor | HONDA GP 160 - 4-stroke engine |
| Motor output | 3.5 kW |
| Whisper-quiet | No |
| Sound power level Lw | 97 dB(A) |
| Sound pressure level Lp | 78 dB(A) |
| Intake capacity approx. | 350 l/min |
| Air delivery approx. | 240 l/min |
| Number of cylinders | 1 |
| Number of compression stages | 1 |
| Compressor speed | 3,400 rpm |
| Maximum pressure | 10 bar |
| Tank capacity | 2.5 l |
Conclusion: Mobile compressed air without a fixed power connection
With an air delivery of 240 l/min, an operating pressure of 10 bar, and a motor output of 3.5 kW, the AEROTEC Petrol Compressor AEROTEC 400-2.5 HONDA offers a clear basis for choosing the device. Anyone looking for a petrol compressor for the described area of application can compare the technical data directly with their own compressed air requirements.
